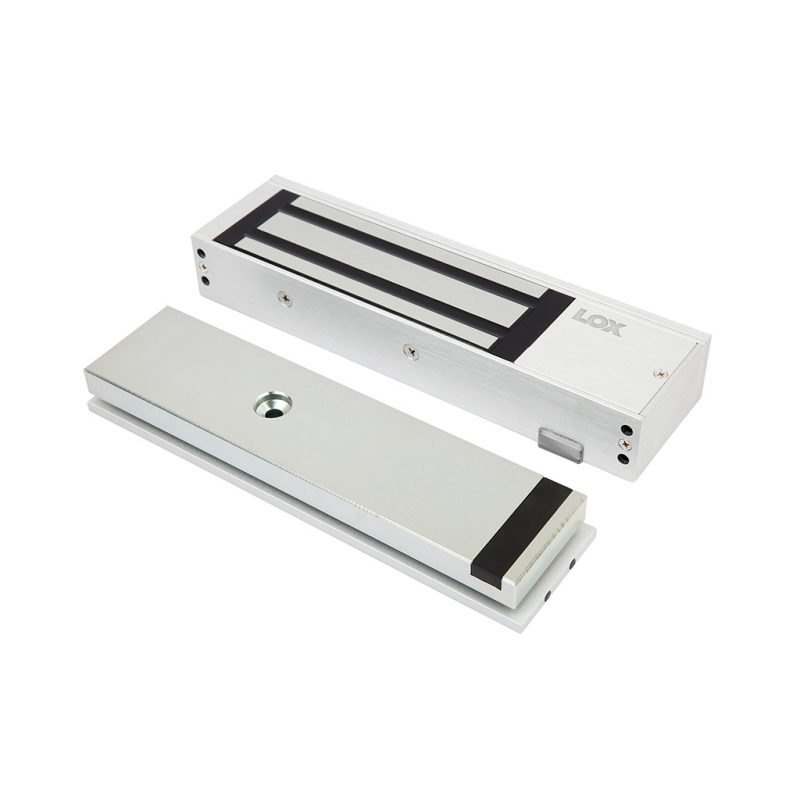

LOX S114888 EM5700M ELECTRO MAGNETIC SINGLE MAGLOCK 580KG MON TAMPER PLATE
SKU
403454
Brand
MPN
S114888
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$263.00
Buy Now And Earn 263 Reward Points!
The LOX EM5700 Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category
| EM5700M | SINGLE ELECTRO MAGNETIC LOCK MONITORED |
| HOLDING STRENGTH | UP TO 580KG |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 500mA 24VDC = 260mA |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| LSS MONITORING | LSS LOCK STATUS SENSOR (HALL EFFECT) |
| DSS MONITORING | DOOR STATUS SENSOR (REED SWITCH) |
| DOOR STATUS SENSOR (REED SWITCH) | LED LIGHT STATUS INDICATES LOCKED OR UNLOCKED STATUS |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
