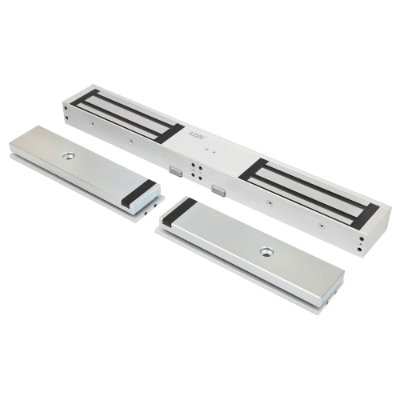

LOX S114889 EM5700DM ELECTRO MAGNETIC DOUBLE MAGLOCK 580KG MON 25YR
SKU
403453
Brand
MPN
S114889
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$480.00
Buy Now And Earn 480 Reward Points!
The LOX EM5700D Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category.
THE MONITORED MAGNETIC LOCKS HAVE:
• A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
• A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
• Highly visible red/green LED Status Light
• Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
| EM5700DM | DOUBLE ELECTRO MAGNETIC LOCK MONITORED |
| HOLDING STRENGTH | UP TO 580KG, TESTED TO 1 MILLION CYCLES |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 500mA X 2 24VDC = 260mA X 2 |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARD CE C-TICK |
| LSS MONITORING | LSS LOCK STATUS SENSOR (HALL EFFECT) |
| DSS MONITORING | DOOR STATUS SENSOR (REED SWITCH) |
| LED LIGHT STATUS | LED LIGHT STATUS INDICATES LOCKED OR UNLOCKED STATUS |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
