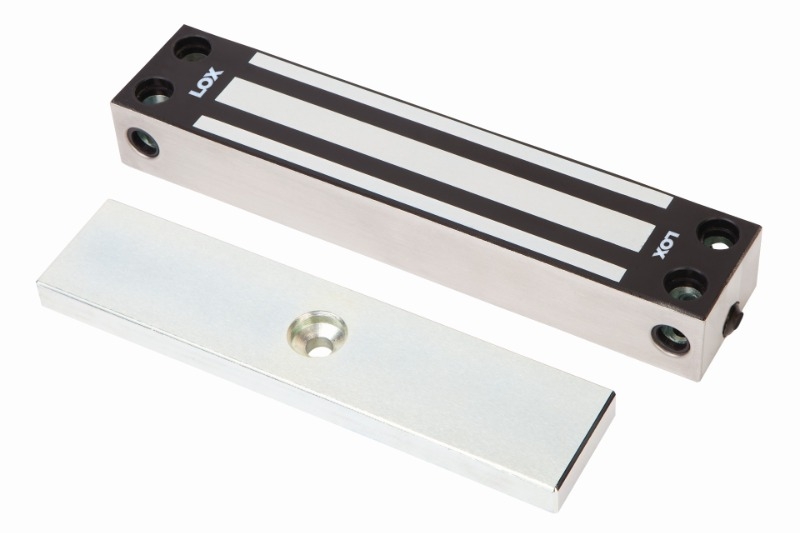

LOX S114902 EM4700 ELECTRO MAGNETIC MAGLOCK WEATHER RES 380KG MON 25YR
The LOX EM4700 has been designed with a fully enclosed stainless-steel housing. It is one of the most reliable locking devices for true external applications exposed to wind and weather. The EM4700 lock is IP67 rated and a proven locking solution in the harshest environments around Australia such as surf-lifesaving clubhouses and the like. It has a holding force of up to 380kg a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC.
The EM4700 Electro Magnetic Gate Lock has a Lock Status (LSS) monitoring feature by Hall- Effect and comes with a Lifetime Warranty.
EM4700 FACTS:
• Up to 380kg holding force
• Lock Status monitoring Sensor (LSS)
• Stainless 304 steel body housing
• Weather resistant IP67
• Lifetime warranty
• CE/RCM
No residual magnetism
| EM4700 | WEATHER RESISTANT ELECTRO MAGNETIC GATE LOCK MONITORED |
| HOLDING STRENGTH | UP TO 380KG |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 400mA 24VDC = 200mA |
| APPROVALS | CE C-TICK |
| LSS MONITORING | LSS LOCK STATUS SENSOR (HALL EFFECT) |
| EMVIRONMENTAL | IP67 RATED, OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
| WARRANTY | LIFETIME WARRANTY |
