LOX S114912 DB1260PTL DROP BOLT POWER TO LOCK 25MM ROUND FACE PLATE 1YR
SKU
406736
Brand
MPN
S114912
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$243.00
Buy Now And Earn 243 Reward Points!

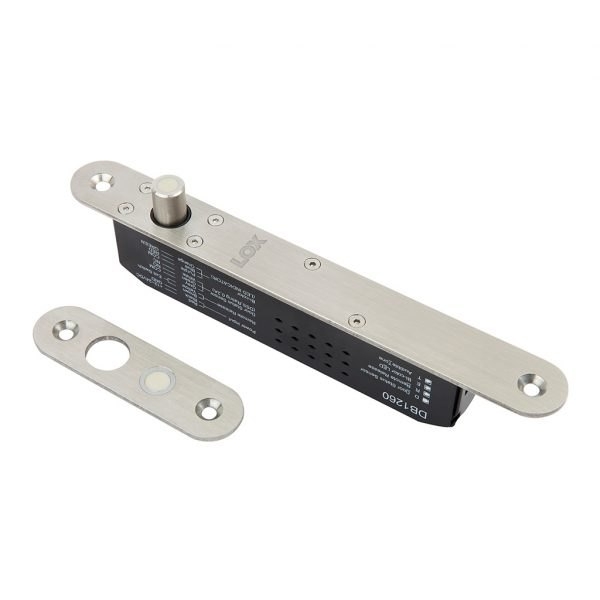

The LOX DB1260 Electric Drop Bolt has been designed to be used on double action (swing through) doors or as an additional locking device in conjunction with an Electric Strike in single door applications.
The DB1260 has a 25mm wide face plate and is therefore applicable on narrow style frame installations.
It is available in either “Power to Lock” (Fail Safe) or “Power to Open” (Fail Secure).
The DB1260 product range provides several glass-door mounting accessories. We do not recommend using this product on Emergency Egress Door.
| DB1260PTL | MORTISE MOUNT ELECTRIC DROP BOLT, NARROW STYLE POWER TO LOCK (FAIL SAFE) |
| HOLDING STRENGTH | UP TO 300KG, TESTED TO 400.000 CYCLES |
| VOLTAGE/CURRENT | DUAL VOLTAGE 12/24VDC 12VDC = 530mA 24VDC = 260mA |
| APPROVALS | UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| DSS MONITORING | DOOR STATUS SENSOR (REED SWITCH) |
| ENVIRONMENTAL | OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
