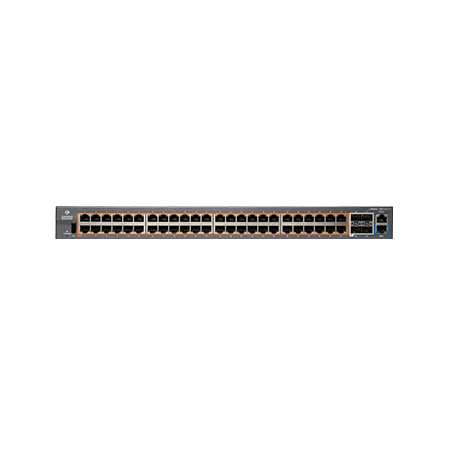

Cambium Cnmatrix Ex2052-P, Poe Switch, 48 1G & 4 Sfp+ Fixed 540 - No Pwr Cord 5YR S116279
SKU
390078
Brand
MPN
S116279
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,390.00
Buy Now And Earn 3390 Reward Points!
Cambium Networks cnMatrix EX2000 Series EX2052-P - Switch - Fixed 540, no power cord - Managed - 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - rack-mountable - PoE+ (400 W)
| Ports | 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) |
| Power | AC 100-240 V |
| Weight | 5.4 kg |
| Capacity | VLANs supported: 4000 ? QoS queues: 8 ? ACL entries (ingress/egress): 128 ? Static ARP entries: 512 ? ARP entries: 512 ? Static routes: 64 ? Dynamic routes: 512 ? IGMP multicast groups: 256 |
| Features | Auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Per-VLAN Spanning Tree (PVST), DHCP snooping, Quality of Service (QoS), reset button, LLDP support, DHCP relay, Per-VLAN Rapid Spanning Tree (PVRST), DHCP client, port isolation, IGMP proxy, 2 fans, Link Aggregation, Root Guard, Private VLAN Edge (PVE), LLDP-MED, IGMP fast leave, Denial of Service (DoS) protection, BPDU Filter, Telnet server, Telnet client, BPDU Guard |
| PoE Budget | 400 W |
| Device Type | Switch - 52 ports - Managed |
| Performance | Throughput: 176 Gbps ? Forwarding rate (64-byte packets): 120 Mpps |
| Enclosure Type | Rack-mountable 1U |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Dimensions (WxDxH) | 44 cm x 35 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ak, IEEE 802.3at |
| Product Description | Cambium Networks cnMatrix EX2000 Series EX2052-P - switch - fixed 540, no power cord - 52 ports - Managed - rack-mountable |
| MAC Address Table Size | 16K entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI |
Cambium Networks cnMatrix EX2000 Series EX2052-P - Switch - Fixed 540, no power cord - Managed - 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - rack-mountable - PoE+ (400 W)
