PERMACONN S117280 PM54 DUAL SIM 4G & IP COMM 2YR
SKU
394605
Brand
MPN
S117280
Warranty
Standard Manufacturer's Warranty
$236.00
Buy Now And Earn 236 Reward Points!

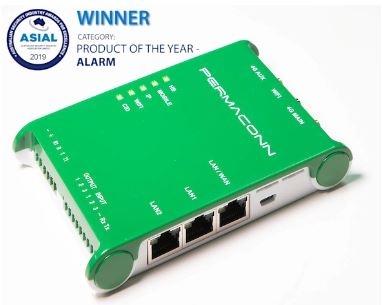

PM 54 4G - LTE
Next generation smart communicator with high-speed internet router and Wi-Fi hotspot.
Key Features
Industry First: Alarm, router and hotspot features work simultaneously and can easily be powered from the alarm panel
Secure, High Speed 4G: Connect any internet-ready device and view high definition CCTV in real-time
Enhanced Connectivity: Extend your clients’ networks and provide a 4G fall-back if their primary IP connection fails
Easy to Use: Plug and play install with remote configuration over 4G/IP using Atlas
Upload / Download: Remote alarm panel programming (Inc. Bosch 2000 / 3000)
| 4G LTE-FDD: | Frequency: B1(2100) B3(1800) B5(850) B8(900) B28(700) Bandwidth: Max 10Mbps (DL) Max 5Mbps (UL) |
| 3G HSPD+: | Frequency: B1(2100) B5(850) B8(900) Bandwidth: Max 21Mbps (DL) Max 5.76Mbps (UL) |
| Antenna: | 2 antennas for Cellular (MIMO) + 1 for Wi-Fi |
| WIFI Capability: | Supports: IEEE 802.11b/g/n Frequency: 2.4GHz |
| Ethernet Specs: | Ports: 3 x RJ-45 port Physical layer: 10/100Base-T Data rate: 10/100 Mbps Interface: Auto MDI/MDIX |
| Routing/Failover: | IP pass-through; NAT, NAPT with IP Port Forwarding; Ethernet Bridging; DHCP; DNS Client and Server |
| Failover: | Automatic failover/failback to second cellular SIM, Wi-Fi or Ethernet. IP/Wi-Fi to SIM A and finally SIM B. |
| Management: | Remote configuration via Atlas web portal |
| Data Modem: | 2400 baud modem for alarm panel remote upload / download |
| Serial Port: | High Speed RS232 interface for serial connection to alarm and access control panels |
| Auxiliary Input: | 3 x 24Hr inputs state change detected every second EOL 3.3K |
| Dimensions: | 3 x Open Collector outputs @ 50mA (max). Function control using Atlas web portal and/or Pocket Secure app |
| Auxiliary Output: | 110mm (h) x 25mm (d) x 80mm (w) |
| Weight: | 180 g |
| Power: | 10 to 15V DC |
| Consumption: | Idle 0.12A @13.8V DC |
| Transmitting: | 0.35A @13.8V DC |
