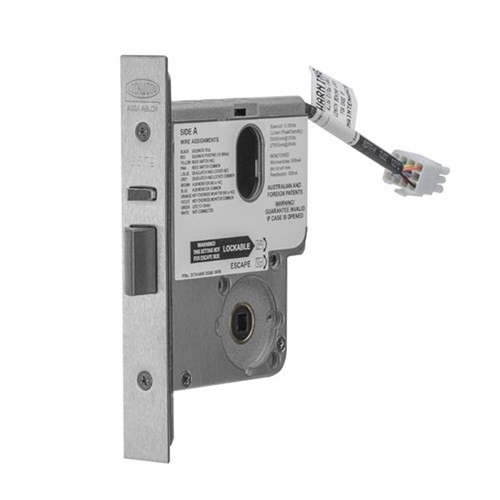

Designed and manufactured in Australia, the 3579 series electric mortice is a high performance lock of superior quality. It is constructed from high grade zinc alloy secured between stainless plates making suitable for high security applications.

The 3579 lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

For use in high security government, institutional and commercial projects, the 3579 Series Mortice Lock has been successfully SCEC endorsed for secure area applications.

The Lockwood 3579 Series Cylinder Mortice Lock has been successfully fire tested up to 4 hours on fire door assemblies in accordance with Australian Standard AS 1905.1 - 2005, Part 1: Fire Resistant Doorsets.

To achieve secure area rating, the 3579 Mortice Lock must also:

• Be fitted with a SCEC endorsed 570 oval cylinder which is also secure area rated, e.g ABLOY PROTEC.
• Be fitted with full plate furniture including Lockwood 1800 Series, 2800 Series and Artefact Series II

Key Features
Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application.
• Stainless Steel Latch and Faceplate
• Stainless steel plates that encapsulate the body against attempted vandalism
• Available in Monitored versions only

Monitoring Features
• Dead latched and Locked
• Door position/Reed switch
• Dual key override monitoring
• Request to exit/REX
• LED indication

Field Changeable Settings
• Fail safe/fail secure configuration.
• Multi-voltage - will work on 12-24 VDC systems.
• Handing - left hand and right hand doors
• Selection of free lever or locked lever on both sides of the door
• Key override monitoring either side of the door
• Monitoring contacts – normally closed, normally open (for key override and request to exit only)
