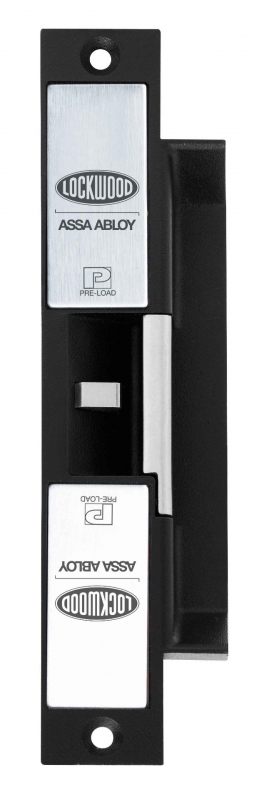

The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.

Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure. (Note: All ES9000 series electric strikes are supplied in Fail Safe configuration).

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

Key Features

Operates under pre load up to 25kg
Easy field selectable fail safe/fail secure
Multi voltage 10-30Vdc
1300kg holding force
2.5 million cycles endurance rating
Latch keeper is significantly quieter in operation
Weather resistant
Mounting tabs as standard
Non handed
TRICARE® 5 Year Warranty
Weather Resistant (IP54)
Built in Protection Diode
Applications

High traffic areas
Doors subjected to side load (pre load)
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Standards and Compliance

S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved
C-Tick Certified
IP 54 Rating
SCEC Endorsed for SL3 Medium Threat Level Areas
