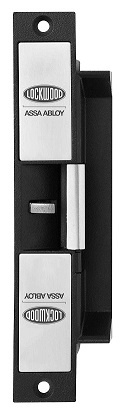

The ES2100 is the latest product to join the iconic Padde by Lockwood range of electric strikes. Tested in accordance with Australian standards this strike offers superior strength, and is durability tested to 1.5 million operations. Standard features include variable voltage, patented field selectable fail safe/fail secure mode change and a unique integrated door position switch.

Integrated Door Position Switch
The ES2100 now offers a unique new monitoring feature not available in other strikes on the market today. The strike has an integrated reed switch that when combined with a specialised Lockwood mortice lock, provides door position monitoring. The strike is supplied with a standard door magnet for use with cylindrical latches. Lockwood mortice locks and face plate accessories are sold seperatley.

Key Features

Patented field selectable fail safe/fail secure
Multi voltage 10-30Vdc
Fully monitored:
- Integrated door position (reed) switch
- Solenoid/Locked
- Latch position

1000kg holding force
4hr fire rating
Mounting tabs as supplied standard
TRICARE® 5 Year Warranty
Weather Resistant (IP54)
Built in Protection Diode
Applications

High traffic areas
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Doors requiring additional door position monitoring
Standards and Compliance

SL8 (Security) Australian Lock Standard (AS4145.2.2008)
D8 (Durability) Australian Lock Standard (AS4145.2.2008)
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005
CE Approved
C-Tick Certified
SCEC Endorsed for SL3 Medium Threat Level Areas
