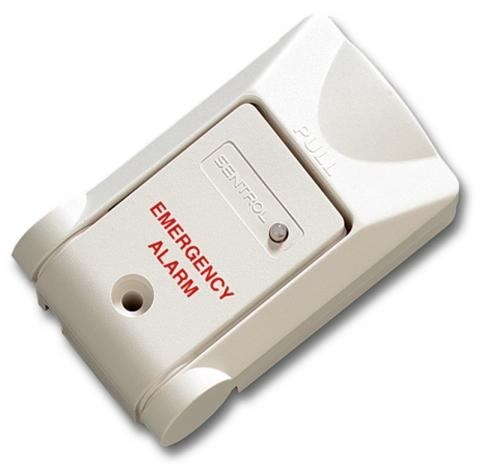

ARITECH S3709 PANIC SW LATCH RED LED SPDT WHT 2YR
SKU
404857
Brand
MPN
3040-W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$62.00
Buy Now And Earn 62 Reward Points!
- Mounts underneath or on side of desk or counter
- Smooth housing prevents accidental damage to clothing
- Actuating lever designed to accommodate only tip of finger
- Reed contact resets when lever is in closed position
- Version with latching LED available
| General | ||
|---|---|---|
| Type | Switch | |
| Water resistant | No | |
| LED | Yes | |
| Latching LED circuit | Yes | |
| Alarm contact | SPDT | |
| Connections | Screw terminals | |
| Wired/wireless | ||
|---|---|---|
| Wired-wireless | Wired | |
| Electrical | ||
|---|---|---|
| Power supply value | 7 to 15 VDC | |
| Current consumption | 8 mA | |
| Physical | ||
|---|---|---|
| Physical dimensions | 74 x 45 x 19 mm (L x W x H) | |
| Colour | White | |
| Environmental | ||
|---|---|---|
| Operating temperature | -18 to +43°C | |
| LED | ||
|---|---|---|
| Red | ||
