Bticino 2WIRE - Linea 100 Digital Call Entry Panel -1Yr S3964A
SKU
394325
Brand
MPN
S3964A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$780.00
Buy Now And Earn 780 Reward Points!

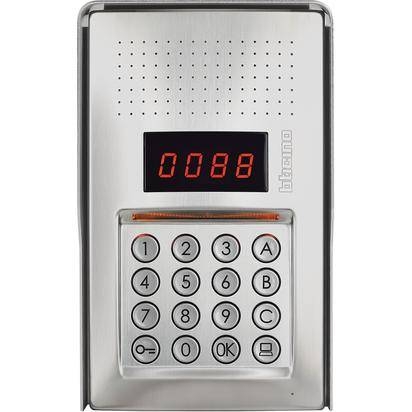

2 WIRE AUDIO digital call pushbutton panel for wall-mounted installation. The device features a pushbutton panel with 16 keys and a digital display to show operating status. Programming of the entrance panel allows for it to be used as a call handset and door lock release using a dedicated code.
Digital call pushbutton panel
Up to 4000 handset addresses
Connection (PL) for a local door lock release pushbutton
System power supply cuts do NOT cause the loss of memory data
Keypad lighting LED
Alphanumeric keypad
Microphone and loudspeaker volume adjustment
Digital call pushbutton panel
Up to 4000 handset addresses
Connection (PL) for a local door lock release pushbutton
System power supply cuts do NOT cause the loss of memory data
Keypad lighting LED
Alphanumeric keypad
Microphone and loudspeaker volume adjustment
| Brand | BTicino |
| Calls | 4000 |
| Depth | 42mm |
| Width | 138mm |
| Colour | Aluminium |
| Height | 229mm |
| Series | Linea 100 |
| insertion | 2 wires |
| Plant type | SCS-BUS |
| Protection class | IP44 |
2 WIRE AUDIO digital call pushbutton panel for wall-mounted installation. The device features a pushbutton panel with 16 keys and a digital display to show operating status. Programming of the entrance panel allows for it to be used as a call handset and door lock release using a dedicated code.
