Bticino 2WIRE - Linea 100 4 Push Button Entry Panel -1Yr S3965A
SKU
394326
Brand
MPN
S3965A
Warranty
Standard Manufacturer's Warranty
$493.00
Buy Now And Earn 493 Reward Points!

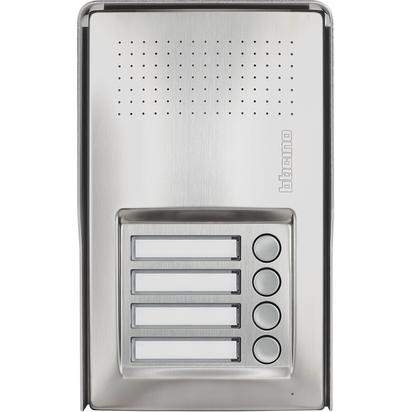

2 wire audio pushbutton panel with 4 pushbuttons for wall mounted installation. It has an internal contact (C – NO – NC) for the connection of an electrical door lock or an external actuator. Connection (PL) for a local door lock release pushbutton.
2 wire audio pushbutton panel with 4 pushbuttons
Connection (PL) for a local door lock release pushbutton
Microphone and loudspeaker volume adjustment
2 wire audio pushbutton panel with 4 pushbuttons
Connection (PL) for a local door lock release pushbutton
Microphone and loudspeaker volume adjustment
| Brand | BTicino |
| Calls | 4 |
| Colour | Aluminium |
| Series | Linea 100 |
| insertion | 2 wires |
| Dimensions | 229 x 138 x 42mm |
| Plant type | SCS-BUS |
| Robustness | IK08 |
| Protection class | IP44 |
| Operating temperature | (-25°)-(+70°)C |
2 wire audio pushbutton panel with 4 pushbuttons for wall mounted installation. It has an internal contact (C – NO – NC) for the connection of an electrical door lock or an external actuator. Connection (PL) for a local door lock release pushbutton.
