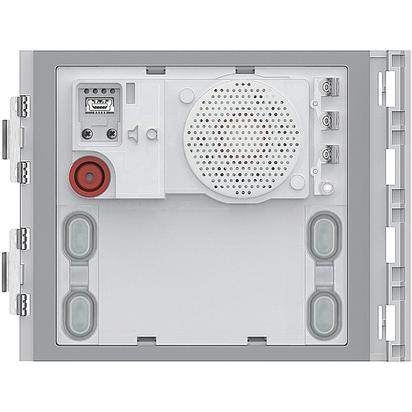

Bticino 2WIRE - Sfera Audio Module 4 Pushbutton 1YR S4039A
SKU
394368
Brand
MPN
S4039A
Warranty
Standard Manufacturer's Warranty
$430.00
Buy Now And Earn 430 Reward Points!
Speaker module suitable for 2 wires audio & video systems. Fitted with loudspeaker and microphone volume adjustment. It can manage up to 100 pushbutton calls when using additional double row pushbutton modules. It can be used for opening an electrical door lock directly connected to the S+ and S- clamps (18 V 4 A impulsive - 250 mA holding current 30 Ohm max) and the connection to a local door lock release pushbutton on the PL clamps. Preset for additional power supply. Fitted with front LEDs for the notification of the operating status: door lock release, communication active, call put through, and system busy. Integrated optic sensor for the switching on of the night backlighting. To be completed with surround plate. The device can be confi gured either physically or using the PC and the TiSferaDesign software.
| Brand | BTicino |
| Calls | 4 |
| Width | 115mm |
| Height | 91mm |
| Series | Sfera |
| Modules | 1 |
| Plant type | 2Wires |
| Operating temperature | -25° - +70°C |
Speaker module suitable for 2 wires audio & video systems. Fitted with loudspeaker and microphone volume adjustment. It can manage up to 100 pushbutton calls when using additional double row pushbutton modules. It can be used for opening an electrical door lock directly connected to the S+ and S- clamps (18 V 4 A impulsive - 250 mA holding current 30 Ohm max) and the connection to a local door lock release pushbutton on the PL clamps. Preset for additional power supply. Fitted with front LEDs for the notification of the operating status: door lock release, communication active, call put through, and system busy. Integrated optic sensor for the switching on of the night backlighting. To be completed with surround plate. The device can be confi gured either physically or using the PC and the TiSferaDesign software.
