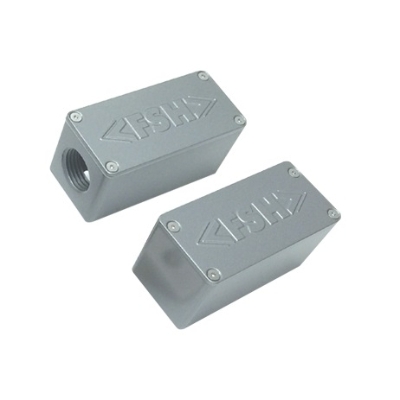

Fsh Fss1-S Surface Mount High Security Reed 5YR S4593A
SKU
400561
Brand
MPN
S4593A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$612.00
Buy Now And Earn 612 Reward Points!
ACCEPT
| PART No: | FSS1-S |
| PATENTS: | Patents granted and pending worldwide based on PCT/AU2014/000210 |
| FUNCTION: | Surface mount conduit version |
| APPROVALS: | Rated to IP67 | RCM Compliant | SCEC Approved, Security Level 4 (SL4) rated |
| TOLERANCE: | Door Gap 1 - 7mm Door Movement 15mm |
| DIMENSIONS: | L=75mm H=34mm D=35mm |
| MANUFACTURE: | Designed & Manufactured in Australia |
| ARRAY MAGNETS: | Up to 8 magnets for unique magnetic footprint |
| SECURITY LEVEL: | SCEC Security Level 4 (SL4) Approved | U.L. 634 Level 2, |
| VOLTAGE / CURRENT: | 10 – 30VDC/<10mA - Can now be powered by Type 1/1A and Class 5 E.O.L Modules |
| HALL EFFECT SENSORS: | 7 |
| ALARM & TAMPER CONTACTS: | N.C. common N.O., 0.2A @ 30V plus changeover contacts for access control system |
| END OF LINE COMPATIBILTY: | Space for end-of-line encryption modules, or resistor/s |
