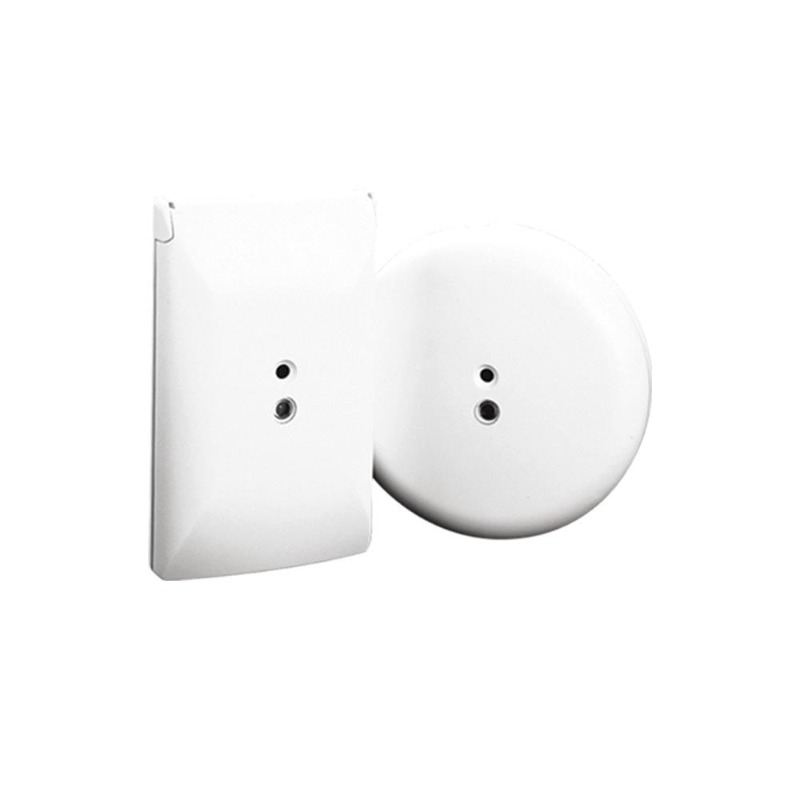

ARITECH S4858A SHATTERPRO 3 ACOUSTIC RND HOSIN WHT 2Y
Description:
The 5815NT-ART series ShatterPro3 is an advanced series of acoustic glassbreak sensors. In laboratory tests to compare reliability with the excellent proven standard of the ShatterPro2 (GS903N), the ShatterPro3 provides 250 percent better false alarm immunity. The coverage pattern can be easily adjusted to fit small or large rooms. Interference outside the range will not cause false alarms.
Using the patented ?Pattern Recognition Technology?, the sensor looks for patterns that are typical for breaking glass. This results into a greater false alarm immunity for the ShatterPro3 range.
Features:
- New EZ design for quick and easy installation
- Pattern Recognition Technology for superior detection and false alarm immunity
- Suitable for quiet occupied areas on a perimeter loop
- Automatic test and user verification
| General | ||
|---|---|---|
| Technology | Acoustic | |
| Glass types | Laminated, Plate, Tempered, Wired | |
| Range | 7.5 m radius | |
| Relay output | SPDT, open 4 sec on alarm | |
| Tamper switch | Yes | |
| Wired/wireless | ||
|---|---|---|
| Wired-wireless | Wired | |
| Electrical | ||
|---|---|---|
| Power supply value | 9.5 to 16 VDC | |
| Current consumption | 15 mA typical - 25 mA max | |
| Physical | ||
|---|---|---|
| Physical dimensions | 102 x 21 mm (Ø x L) | |
| Colour | White | |
| Mounting type | Surface mount | |
