LOCKWOOD S7124 ES2000 12/24VDC FAIL SAFE MONITORED 5YR
SKU
403476
Brand
MPN
S7124
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$263.00
Buy Now And Earn 263 Reward Points!

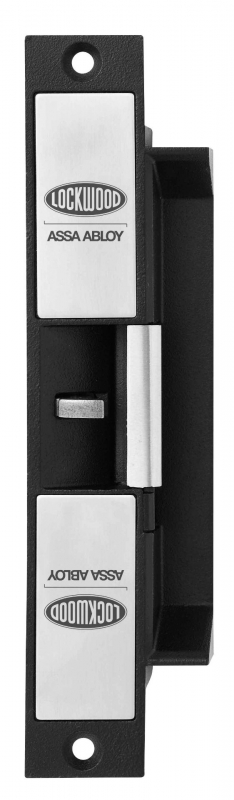

The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.
Voltage | 12Vdc |
Current | 175 mA @ 12Vdc |
Solenoids | Solenoids are rated for continuous use |
Monitoring | Solenoid Monitor - 1 amp NO/NC microswitch, Door/Latch Monitor - 1 amp NO/NC microswitch |
Holding Force | 850kg Static Strength Rating |
Endurance | Cycle tested to 1,000,000 operations |
Latch | Suitable for 15mm latch bolt with 3mm door gap |
Environment | Operational temperature range - 20°C to +60°C |
Body | Solid Stainless Steel Construction |
Keeper | Stainless Steel |
