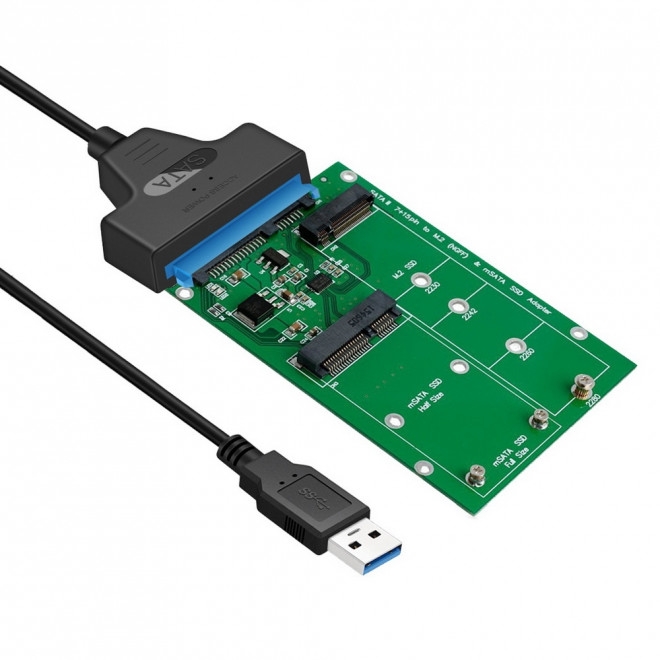

(LS)Simplecom SA221 USB 3.0 To Msata + Ngff M.2 (B Key) SSD 2 In 1 Combo Adapter SA221
SKU
302625
Brand
MPN
SA221
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $34.00 Regular Price $39.00
Buy Now And Earn 34 Reward Points!
Simplecom SA221 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA and USB 3.0 interface. Use this adapter to easily access 6 different size M.2 or mSATA SSDs via standard SATA or USB 3.0 port. It’s an ideal solution for data backup and migration.
| mSATA + M.2 SSD 2 in 1 Combo Adapter | Detachable USB 3.0 cable, with SATA and USB 3.0 dual interface |
| LED indicates power and activity status | Support SATA Revision 3.2 |
| PCI Express M.2 Spec. Revision 0.7, Version 1.0 | PCI Express Mini Card Electromechanical Spec. 1.2 |
| B Key M.2 interface, support B Key or B+M Key M.2 SSD | Thermal shutdown protection |
| Short circuit protection | In-rush current suppression |
| PWM synchronous buck converter Power IC | Support following form factor M.2(NGFF) SSD: |
| Type 2230-D2-B-M: 30mm(L) x 22mm(W) | Type 2242-D2-B-M: 42mm(L) x 22mm(W) |
| Type 2260-D2-B-M: 60mm(L) x 22mm(W) | Type 2280-D2-B-M: 80mm(L) x 22mm(W) |
| Support following form factor mSATA SSD: | Half size mSATA : 26.8mm(L) x 30mm(W) |
| Full size mSATA : 50.95mm(L) x 30mm(W) | Note: |
| If both M.2 & mSATA SSD inserted at the same time the M.2 SSD will take priority. The mSATA SSD will be disabled until the M.2 SSD is removed. | The M.2 interface is B Key, M Key only or NVMeM.2 SSD are not supported. |
| Package Contents | 1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter |
