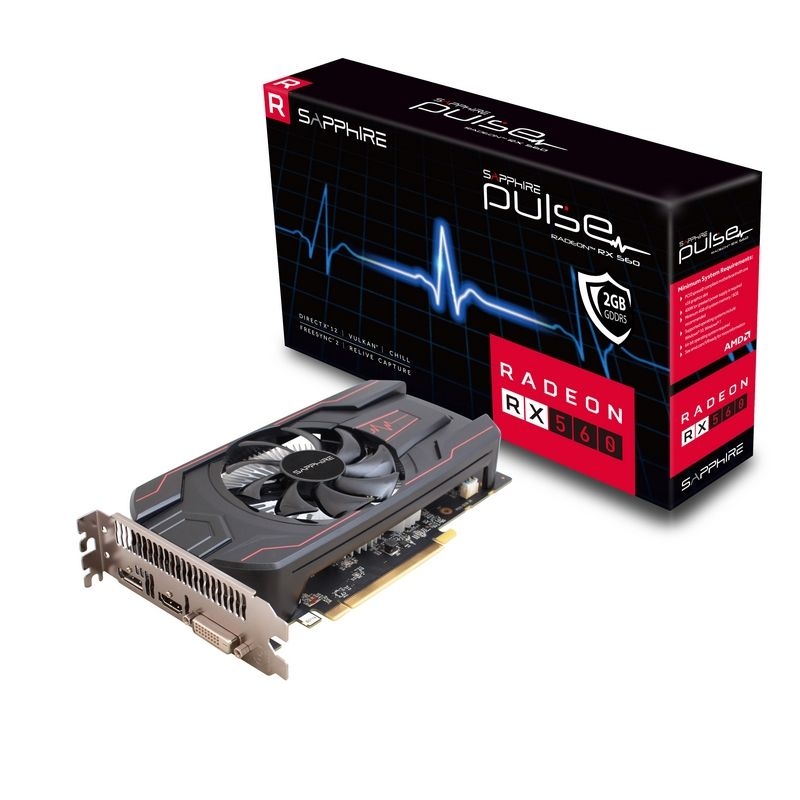

Sapphire Amd Pulse Rx 560 2gb 45w Version Gaming Video Card - Draw Power From Pci-e Gddr5 Dp/ Hdmi/

SKU
264955
Brand
Warranty
1 Year Manufacturer's return to base

No Longer Available

$175.00
Buy Now And Earn 175 Reward Points!

QUICK OVERVIEW

DVI AMD Eyefinity 1226MHz 11267-22-20G

DirectX® 12

DirectX® 12 is a new, “console-like” graphics API from Microsoft® that empowers game developers with more direct and obvious control of PC hardware. This direct or “explicit” control better exposes the hardware resources of AMD Radeon™ GPUs to yield higher hardware throughput and, ultimately, more performance for users. To put it simply: much more efficient hardware through smarter software! At the discretion of a game developer, this superior efficiency can be spent on higher framerates, lower latency (VR), lower power consumption, better image quality, or some calculated balance of all four. In any scenario, gamers stand to benefit greatly from choosing AMD hardware to run their favorite DirectX® 12 game.


AMD Freesync technology

No stuttering. No tearing. Just gaming.

AMD FreeSync™ technology allows a compatible graphics card and monitor to dynamically change frame rates for the optimum display quality without tearing or stuay.

Industry-Standard Displayport

Freesync uses industry-standard displayport Adaptive-Sync Eliminates screen tearing without all the usual lag and latency

  • Synchronizes the refresh rate of a compatible monitor to the frame rate of your content, however much it varies
  • Monitor partners are validating with drivers from AMD now

AMD XConnect™ Technology

Plug in and game on with AMD XConnect technology.

Now it’s easier than ever to connect and use an external Radeon™ graphics card. With AMD XConnect™ technology, external GPU enclosures configured with Radeon™ Graphics can easily connect and disconnect to a compatible ultrathin notebook or 2-in 1 over Thunderbolt™ 3 at any time, just like a USB flash drive—a first for external GPUs!


AMD Eyefinity Technology

Multidisplay technology for gaming, productivity and entertainment

We are taking you beyond the boundaries of traditional PC displays. AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive (an average of 42% more productive according to one study).

Take your PC games to the next level of reality and immersion. Most modern games look great on three screens, and only AMD Radeon™ graphics offer you the ability to play across five screens for an eye-popping gaming experience. Other combinations and configurations with up to six screens work too.1 Create your dream display.


AMD Crossfire™

Harness the power of multiple GPUs

AMD CrossFire™ technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFire™ harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance.1 AMD CrossFire™ technology ready graphics cards fit practically every budget. With the flexibility to combine two, three or four GPUs, AMD CrossFire™ technology is the perfect solution for those who demand extreme performance.


HDR Ready

High Dynamic Range (HDR) is a state-of-the-art technology for gamers and cinephiles that care deeply about the display quality of their TV or monitor. Modeled after the acuity of human vision, HDR vastly expands the range of colors and contrast ratios that can be shown by compatible displays. HDR-ready games and movies played on an HDR display appear strikingly sharp, colorful, and vivid, with enhanced contrast and sophisticated nuance compared to even the most stunning SDR content.

GPU 896 Stream Processors
14 CU
14 nm FinFET
4th Graphics Core Next (GCN)
1226 MHz  Engine Clock

Memory 128 bit Memory Bus
GDDR5 Memory Type
1500 MHz, 6000 MHz Effective
2 GB Size
BIOS Support UEFI BIOS
Displays Maximum 3 Outputs
Output 1 x DVI-D
1 x HDMI
1 x DisplayPort 1.4

Resolution 5120×2880 (60Hz) Pixel DisplayPort Resolution
2560×1600(60Hz) Pixel Dual Link DVI Resolution
4096x2160 (60Hz) HDMI Resolution
API OpenGL® 4.5
OpenCL 2.0
DirectX® 12
Shader Model 5
Feature AMD CrossFire
FreeSync Technology
AMD Eyefinity
DirectX™ 12 Optimized
HDR Ready
Frame Rate Target Control
Precision fan control
Radeon Relive

Cooling Single fan

Form Factor 2 Part Slot Occupied
210(L)X 112(W)X 36 (H) Dimension /mm
Power Consumption 45W
OS Windows 10 Windows 7
System Requirement 400 Watt Power Supply (Suggestion)
CD-ROM or DVD-ROM drive for installing software
The SAPPHIRE Pulse Radeon RX560 plays your favorites at a smooth 1080p, from the latest eSports games and MOBAs to the most popular, graphically-intensive AAA titles. Built on the future-ready Polaris architecture and sporting 1024 GCN stream processors boost-clocked at 1300MHz. The card is ready for the latest technologies like DisplayPort 1.4 HBR3/HDR , HDMI 4K60, and Freesync 2 technology delivering a high level of graphical fidelity in your faorite games and multimedia experience.
