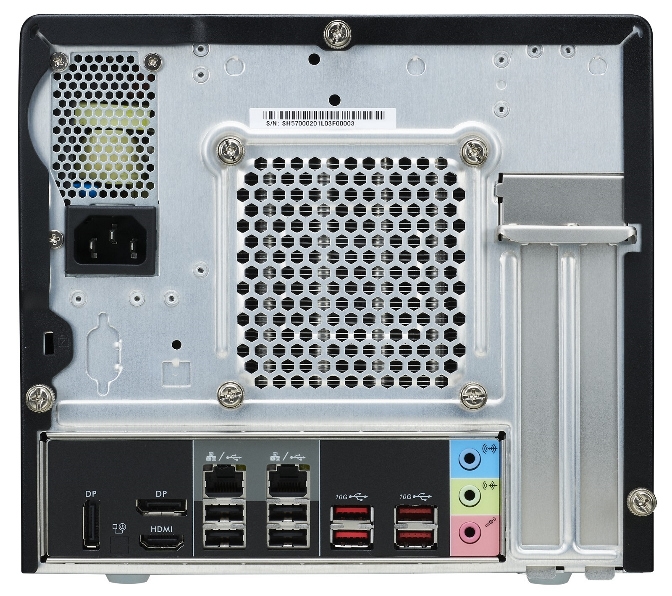

SB860R8

Barebone Intel ® Arrow Lake Core S series CPU LGA 1851 (TDP up to 125W), B860 chipset, 500W, 4x DDR5 (max 192GB), 2x HDMI, 2x DP, 2x 2.5GbE LAN, PCIEx 16 Gen5, PCIEx 4 Gen4, R8 chassis, 2x M.2 2280, 4x 3.5" HDD (SATA RAID support 0,1,5,10)

CPU Support: Intel Arrow lake -Core S series CPU
LGA1851 / TDP up to 125W , With Xe series integrated graphic for ARL-S

Chipset: B860

Video support: 2*HDMI / 2*DP, 4 independence video output

Storage support: 4 * SATA 6Gb/s , 2 * M.2 M key 2280, 1 * M.2 E key 2230

Delivery support : USB - up to USB 3.2 Gen2

Ethernet support : Dual 2.5Gb Ethernet support

Accessory support : WLN-M/PHD3

M/B Dimension: Micro ATX

Chassis Dimension: Shuttle Cube R8 chassis

Power supply : 500W 80plus Gold Flex ATX power supply

Thermal for single MB: Smart FAN

Target market : Mainstream Commercial market Project based customer /
Product life cycle: Mini server 2.5 years
