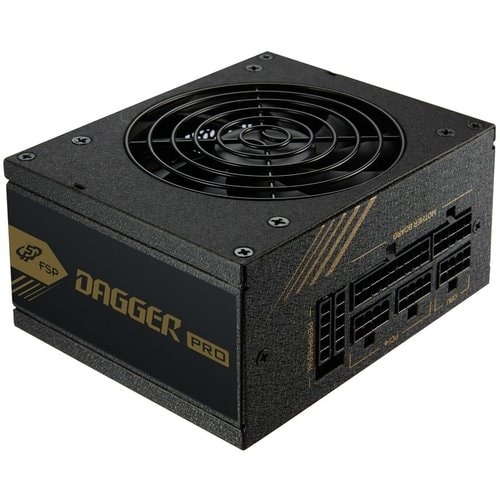

FSP 850W DAGGER PRO ATX 3.1 GOLD SFX MODULAR PSU, SUPPORTS PCIE 5.1 12V-2X6, FEATURES GOLD CERTIFICATION, JAPANESE CAPACITORS, AND SAFETY PROTECTIONS SDA2-850 GEN5
SKU
433133
Brand
MPN
SDA2-850 GEN5
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $229.00 Regular Price $263.00
Buy Now And Earn 229 Reward Points!
The Dagger Pro is FSP's latest 80 PLUS gold SFX power supply series. It features a fully modular design and flat ribbon cables in a compact size that is suitable for pc host machines, VR, Micro ATX and home media systems. The Dagger Pro Series comes in four models - 550W, 650W, 750W, and 850W. With the Dagger Pro, you get twice the power density of a standard ATX PSU without sacrificing quality or performance.
- Compliant with SFX12V V3.3
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- All black ribbon cables
- Powerful single +12V rail design
- Japanese electrolytic capacitors
- Full protections OCP, OVP, SCP, OPP, OTP
| Miscellaneous | |
| Country of Origin | Taiwan |
| Energy Efficiency Certification | 80 Plus Gold |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 6 |
| PCI Express Connector | Yes |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Number of (6+2 pin) PCI Express Power Connectors | 4 |
| Number of 4-pin Molex Power Connectors | 2 |
| Physical Characteristics | |
| Form Factor | SFX |
| Mini-ITX | |
| Internal | |
| Height | 63.5 mm |
| Width | 125 mm |
| Depth | 100 mm |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | SDA2-850,GEN5 |
| Manufacturer Website Address | http://www.fspgroupusa.com |
| Manufacturer | FSP Group USA Corp |
| Product Model | SDA2-850 |
| Product Name | Dagger Pro SDA2-850 850W Power Supply |
| Product Line | Dagger |
| Product Series | Pro |
| Brand Name | FSP Group |
| Technical Information | |
| Efficiency | 90% |
| Fan Diameter | 92 mm |
| Protection Type | Short Circuit |
| Over Voltage | |
| Over Temperature | |
| Over Power | |
| Over Current | |
| Fan Bearing Type | Ball Bearing |
| Number of Fans | 1 |
| Power Factor Correction (PFC) | Active |
| Modular | Yes |
| Specification Compliance | ATX 3.0 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Power | 850 W |
| Output Voltage | -12 V |
| 12 V DC @ 70.83 A | |
| 5 V SB | |
| 12 V | |
| 3.3 V | |
| 5 V | |
| Output Current | 2.50 A |
| 20 A | |
| 300 mA | |
| 70.83 A | |
| Input Frequency | 50-60Hz |
| Number of +12V Rails | 1 |
| Output Voltage Detail | 3.3 V @ 20 A |
| 5 V @ 20 A | |
| 5 V SB @ 2.5 A | |
| -12 V @ 0.3 A | |
