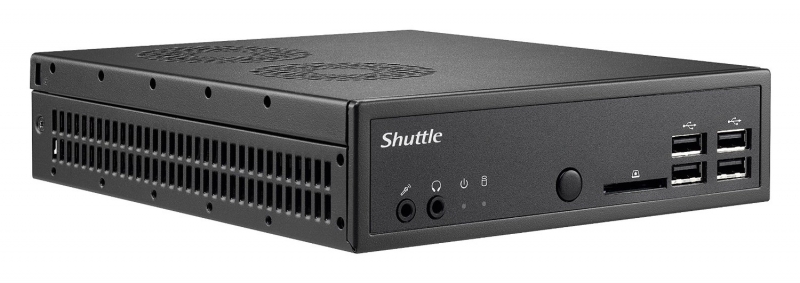

Shuttle Slim Pch87 3 Output Ds87

SKU
213459
Brand
Shuttle
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$364.00
Buy Now And Earn 364 Reward Points!
Add to Compare

Compact and robust Digital Signage Player to support 3 displays

Shuttle’s new DS87 1.3L slim PC, equipped with Intel® H87 chipset, supports the latest fourth-generation Intel® Haswell/Haswell Refresh 65W processors. With integrated Intel® graphics it can support 4K/Ultra HD video content. DS87 provides multiple I/O ports and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, RS232/422/485, Mini PCIe, and more. The system features body thickness of only 43mm and supports international VESA Mount standards, designed for easy integration into places with limited space. With built-in heat pipe cooling technology and smart fan, the DS87 is 24/7 certified and operable in 0-50 ⁰C ambient temperatures to ensure high stability and long-term operation.

Support Intel® 4th generation Core™ processor

Featuring increased processing and graphics performance with support for Intel® fourth-generation Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors that integrate Intel® HD Graphics series core.

Slim design and Easy assembly

The DS87 features a 1.3-liter slim design and body thickness of only 43mm with significantly less cables and no daughter board. This makes for easy assembly, enhanced thermal efficiency, and system stability due to increased airflow.

Industrial Solid Capacitors = High Stability

The DS87 uses industrial capacitors in order to meet the environmental operation demands of commercial applications. Its rugged design allows for 24/7 stable operation over long periods of time – even in 50⁰C environments*.
* With use of SSD and Wide Range Temp. SODIMM
　

Support three independent displays

The DS87 provides two display ports and one HDMI video output to support three independent screens. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.
*For triple display: convert two DisplayPort signals into HDMI or DVI with one active and one normal DisplayPort to HDMI or DVI cable (adapter).

Great connectivity

Connect with multiple peripherals via six USB2.0 ports, two USB3.0 ports, and two RS232 (one of which is RS422 and RS485 compatible). In addition, an adaptor can be used to convert RS232 to USB port for supporting more devices.

24/7 Certified

Approved for 24/7 operation, the series uses smart fan and heat-pipe technology to keep things cool for extended periods of operation.
　

External Power button

The external power button is key for vertical applications where the power on button is often out of reach. The DS87 has a power-on from remote line feature, enabling users to power on from a separate location. Users can find four-pin-connector at the back panel of DS87. In addition, this connector also provides the Clear CMOS function. Without opening the chassis, users can reset the BIOS settings.

VESA Mount Capability

The compact 43 mm thick DS87 has multiple screw holes specially designed on the side of the machine. The design is VESA mount compliant and allows for versatile integration into hardware systems. This space saving capability is well-suited for application of digital signage with limited space.

Equipped with Intel® 8 series Chipset

Equipped with an Intel® H87 Express Chipset, the DS87 supports dual-channel DDR3 1600 with maximum capacity up to 16GB (8GBx2). It supports Gigabit LAN, SATA 6Gbps, and USB3.0 interface for superb data transfer speed.

Heat pipe cooling technology

The DS87 features Shuttle’s exclusive heat pipe cooling module with smart fan design. Smart ventilation keeps the system running quiet and cool for long term operation.

Support 4K Ultra HD

HDMI and DisplayPort video outputs support 4K high resolution (3840x2160), four times the resolution of Full HD.

Built-in 2x Mini PCIe slots

The DS87 features strong expandability with one full size and one half size Mini PCIe slots. This compact system can support mSATA SSD and WIFI modules, among other compatible modules.

Support Dual Gigabit LAN

The DS87 features Dual Gigabit LAN to support 10Mb/s, 100 Mb/s, 1000 Mb/s transfer capacity as well as Wake On LAN and Teaming Mode functions. Connect to a single network using two cables at once with an appropriate switch (teaming mode with load balancing or failover function) or to two different networks depending on the needs of the user.

　

Support Power on by RTC

Enter BIOS to set up the Power on by RTC function that allows you to set a time to boot up the computer and to turn off with the Windows task scheduler. This feature means saving electricity and energy as well as eliminating the cost of on-site service.

The Watch Dog

Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain the normal operation and stability of the system at all times.

Multiple Operating System Support

Window 7
Window 8
Linux
FORM FACTOR 1.3L chassis
PROCESSOR Support Intel Haswell/Haswell refresh Core i3/i5/i7, Pemtium, Celeron CPU max. TDP 65W
CHIPSET Intel H87 Express chipset
MEMORY 2 x 204 pin DDR3 SODIMM slots,8GB per DIMM (Max 16GB)
Dual Channel DDR3 1600 Mhz
VGA HDMI x1 + DisplayPort x2 Support triple display.
4K playback (Dual channel memory recommanded)
AUDIO Realtek ALC892 channel High Definition Audio
ETHERNET Realtek 8111G X2
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE SATA 6.0Gb/s & 3.0Gb/s interface
ONBOARD CONNECTORS (1) SATA 6 connectors
(1) SATA 3 connector
(1) SATA power connector
(1) LPC header
(1) 4pin fan connector
(1) D-sub connector
(1) Front audio header
FRONT PANEL (4) USB 2.0 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader
BACK PANEL (2) RJ45 Gigabit LAN port
(2) DisplayPort
(1) HDMI
(2) USB 3.0 port
(2) USB 2.0 port
(1) RS232*
(1) RS232/RS422/RS485*
(1) External power on/Clear CMOS header
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture
DRIVE BAYS (1) 2.5" HDD / SSD bay
　
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 90W Power Adapter
Input:100- 240V AC
Output: 19V 4.47A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA mount quick installation guide
1* Power cord
1* SATA cable
Screws
Optional 802.11b/g/n WLAN module
EXPANSION SLOT (1) Full size Mini-PCIE socket (Only support m-SATA )
(1) Half size Mini-PCIE socket
　
OS SUPPORT Windows 8.1
Windows 7
Linux
REMARK *RS232 ports support totally 500mA, 0/5/12V output. Voltage setting please refer to Quick Guide.
FORM FACTOR1.3L chassis
PROCESSORSupport Intel Haswell/Haswell refresh Core i3/i5/i7, Pemtium, Celeron CPU max. TDP 65W
CHIPSETIntel H87 Express chipset
MEMORY2 x 204 pin DDR3 SODIMM slots,8GB per DIMM (Max 16GB)
Dual Channel DDR3 1600 Mhz
VGAHDMI x1 + DisplayPort x2 Support triple display.
4K playback (Dual channel memory recommanded)
AUDIORealtek ALC892 channel High Definition Audio
ETHERNETRealtek 8111G X2
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFAC
