Shuttle Vga Cable For 81/ 170 Pvg01

SKU
213463
Brand
MPN
PVG01
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$13.00
Buy Now And Earn 13 Reward Points!

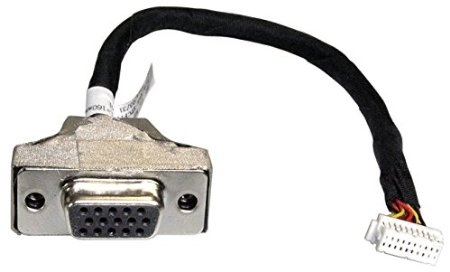

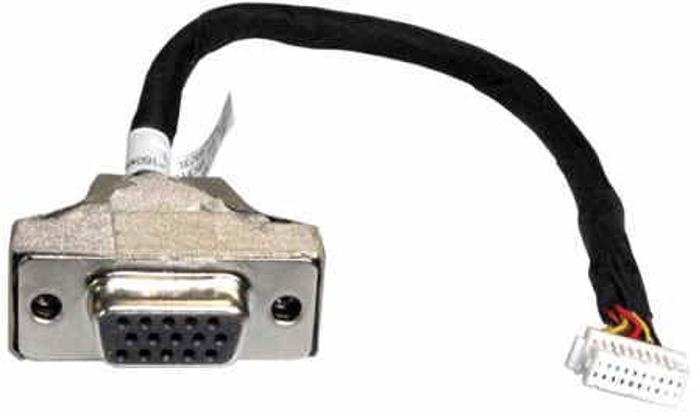

PVG01

VGA port expansion kit for Shuttle Slim-PCs

The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For the 1L slim PCs this also means only one serial interface (COM 1) can be used afterwards.
Note: Slim PCs with H81/H110 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.



  • Scope of delivery:
    -
    Adapter PVG01
    - Installation guide
    - Two screws
  • Specifications:
    Internal adapter cable, Cable length: 160 mm
    Back panel connector: 15-pin Mini D-Sub female socket (DE15)
    Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female
  • Compatibility:
    Compatible to
    - Shuttle XPC slim (1L):  DS81, DS87, DH110, DH170
    - Shuttle XPC slim (3L): XH81, XH81V, XH110, XH110V
PVG01
VGA port expansion kit for Shuttle Slim-PCs

The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards.
Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.
Scope of delivery:
- Adapter PVG01
- Installation guide
- Two screws
Specifications:
Internal adapter cable, Cable length: 160 mm
Back panel connector: 15-pin Mini D-Sub female socket (DE15)
Internal connector: Subminiature 2x10-pin, 1 mm pitch size, female
Compatibility:
Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V
Full spec: http://www.shuttle.eu/products/xpc-accessories/pvg01/
