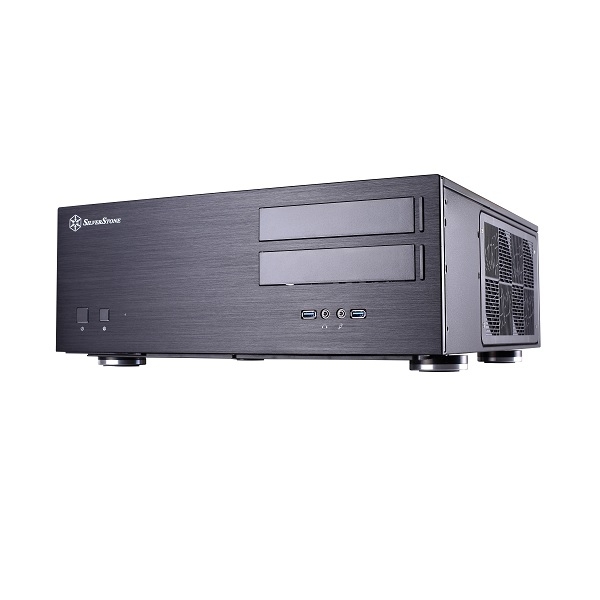

SilverStone Black Grandia Series GD08 HTPC Chassis (USB3) SST-GD08
SKU
154662
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
￭ Positive air pressure design for excellent cooling/quietness and dust-prevention
￭ Supports expansion cards up to 13.6 inches
￭ Supports Extended ATX motherboard
￭ Quick access filters to prevent dust buildup
￭ Aluminum front panel with premium styling
￭ LED indicator with adjustable brightness
￭ Impressive storage capacity of up to twelve drive bays
|
The introduction of Grandia GD07 and
GD08 cases from SilverStone ushers in a new era of home theater
computing like never before. For the first time, the power and
storage capacity of a server can now be neatly stowed
beautifully and quietly in a home theater environment.
Completely reengineered to fully utilize all available spaces,
the Grandia GD08 can accommodate an incredible amount of drives
(up to twelve) and high-end components (graphics cards up to
13.6 inches long) with minimal sacrifices. It is even possible
to fit SSI EEB (12” x 13”) extended ATX motherboards in the GD07 despite
maintaining an exterior dimension similar to SilverStone’s
previous generation full-size HTPC cases. With a wealth of
lessons learned from building the best performing tower cases in
the last several years, SilverStone engineers upgraded GD08’s
cooling performance tremendously with up to five 120mm fan
options. And to make sure owners can easily maintain their
cases’ cooling ability over time with the lowest noise possible,
custom designed removable filters surround the case for positive
pressure to work effectively and quietly. To complement the
tremendous new design, the GD08 is built with the thickest
aluminum front panel of any SilverStone case with a styling that
pays homage to the most popular HTPC case ever made, the Lascala
LC17. For HTPC enthusiasts all over the world, this case is
truly a dream come true!
|
| Model No. | SST-GD08B(Black) | |
| -- | ||
| -- | ||
| -- | ||
| Material | Aluminum front panel, SECC body | |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX *1 | |
| Multimedia | -- | |
| Drive Bay | External | 5.25" x 2 (support optical drive only) |
| -- | ||
| Internal | 3.5" x8, 2.5” x2 | |
| Cooling System | Front | -- |
| Rear | 2 x 80mm fan slot | |
| Side |
1 x 120mm intake fans, 900rpm, 18dBA 1 x 120mm fan slot |
|
| Top | oversized vents | |
| Bottom |
2 x 120mm intake fans, 900rpm, 18dBA (backwards compatible with 1 x 120mm fan + 3 x 80mm fans, or 6 x 60mm fans) |
|
| Internal | -- | |
| Expansion Slot | 7+1 | |
| Front I/O Port |
USB 3.0 x 2 audio x 1 MIC x 1 |
|
| Power Supply | Support standard PS2(ATX) up to 220mm, recommend depth is under 180mm *2 | |
| Operating system support | -- | |
| Expansion Card | Support graphic cards up to 13.6 inches, width restriction-5.25" | |
| Limitation of CPU cooler | 138mm | |
| Limitation of PSU | 220mm | |
| Net Weight | 7kg | |
| Dimension | 440mm(W) x 175mm(H) x 425mm(D), 32.7 liters | |
| Extra | Support Kensington lock | |
| Support VESA Mount | -- | |
|
*1: Motherboard size will affect the size and amount of fans that
can be fitted in the bottom panel. Please refer to manual for
details. *2: With optical drive installed, the deepest PSU recommended is 180mm. |
Manufacturer: SilverStone. Founded in 2003, SilverStone Technology are a recognised leader in enthusiast level computer products. With a quest to provide consumers with products which create inspiration, SilverStone understand that enthusiasts desire integrated, advanced technologies that are both highly functional and a complete joy to use. SilverStone engineers pride themselves in designing computer chassis, power supplies and accessories which are manufactured to the highest standards ensuring a first class aesthetic alongside complete reliability in operation. SilverStone products are as technologically sound as they are beautiful!
Chassis details:
* Manufacturers model code: SST-GD08B (Black).
* Market orientation: Quiet PC, SFF & digital lifestyle enthusiast.
* Case type: Desktop.
* External colour: Black.
* Internal powder coating colour: Black.
* Case dimensions (LxWxH): 425mm x 440mm x 175mm.
* Front bezel material: Plastic.
* Side panel material: Steel.
* Body material: Steel.
* 5.25" drive bays (external): 2.
* 3.5" drive bays (external): 0.
* 3.5" drive bays (internal): 8.
* 2.5" drive bays (internal): 2.
* Compatible motherboard sizes: SSI-EEB, SSI-CEB, Extended, Standard & Micro ATX.
* Rear expansion slots: 8.
* Included front panel cooling fans: 0.
* Included rear panel cooling fans: 0.
* Included top panel cooling fans: 0.
* Included side panel cooling fans: 1x 120mm.
* Included bottom cooling fans: 2x 120mm.
* Total available case fan mounting positions: 6.
* Included AC97 I/O ports: 0.
* Included HD Audio I/O ports: 1.
* Included USB2 I/O ports: 0.
* Included USB3 I/O ports: 2.
* Included e-SATA I/O ports: 0.
* Included IEEE1394 FireWire I/O ports: 0.
* Included I/O port location: Front.
Would you like to know more? Check out the SilverStone Technology full product information page.
