OPTEX S3590A SL-350QNR QUAD 100M BATT PWR OUTDOOR-5YRS SL-350QNR

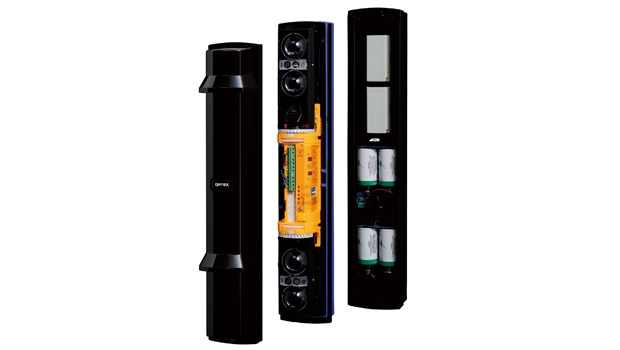

The SL-350QNR is a 100m battery-powered outdoor active infrared (AIR) beam set which is designed for perimeter security. The Quad beam set is completely wire free and can be quickly installed in remote or hard-to-wire areas.
Please note the batteries, transmitter and BCU-5 are sold separately.
The SL-350QNR is wireless ready, battery operated photoelectric detectors are designed to work with most manufacturer`s wireless transmitters, and the back box has enough space to accommodate them. They are easy deployable and adaptable to any control systems currently installed.
Features
- Long distance 100m
- Quad Beams
- Excludes batteries, transmitter and BCU-5
- Wireless-Ready
- Sniper viewfinder with 2X magnification
- Weather protection IP65
- Spacious back box
| Maximum detection range | 100 m |
| Maximum arrival distance | 1,000 m |
| Detection method | Quad infrared beam interruption detection |
| Selectable beam frequency | - |
| Interruption time | Variable between 50/100/250/500 ms (4 steps) |
| Power source | Recommend : 3.6 V, 13.0 Ah LSH20 lithium batteries manufactured by SAFT Operating range : 3.2 V - 4.0 V lithium batteries Transmitter : 2 or 4 units, Receiver : 2 or 4 units |
| Current draw (MAX) | 745 µA, Transmitter : 420 µA + Receiver : 325 µA (at 25°C, 3.6 VDC) |
| Battery life * ** | Transmitter : Approx. 4 years Receiver : Approx. 5 years |
| Alarm output | Form C-Solid State Switch : 3.6 VDC, 0.01 A |
| Alarm period | 2 sec (±1) (Nominal) |
| D Q output | Form C-Solid State Switch : 3.6 VDC, 0.01 A (Receiver only) |
| Low battery output | N.C. (mechanical switch) : 3.6 VDC, 0.01 A |
| Tamper output (cover, back box, main unit) | N.C. (contact output) : 3.6 VDC, 0.01 A Opens when cover, main unit or back box is removed. |
| Alarm Indicator (Receiver) | Alarm : ON Light receiving : OFF |
| Level indicator (Receiver) | Not Light receiving : OFF Light receiving : Flickering or OFF |
| Power (Transmitter) | Power ON : ON, Power OFF : OFF |
| Operating temperature | -20°C to +60°C @ 95% (max.) |
| Alignment angle | ±90° Horizontal, ±10° Vertical |
| Dimension H x W x D mm : | 452 x 83 x 138 |
| Weight | Approx. 3,300 g (Total weight of Transmitter + Receiver, excluding accessories) |
| International protection | IP65 |
