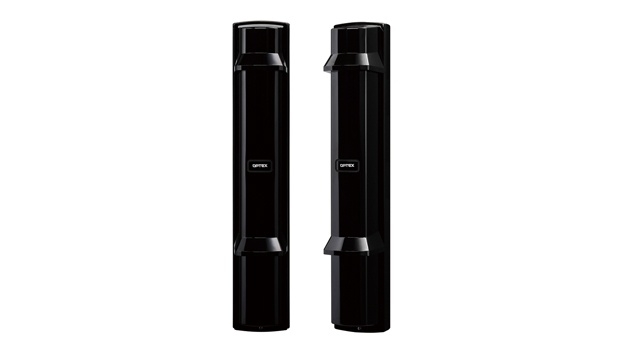

OPTEX SL-650QDP QUAD 200M MULTI-FREQ PWR BEAM SEL 2 X MOD OUTDOOR-5YRS
SKU
403128
Brand
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$682.00
Buy Now And Earn 682 Reward Points!
SL-650QDP series is standard long range photoelectric detector. In addition to basic feature such as quad beam /double modulation, sunshine protection technology and beam power control selector decreases false and missed alarms. LED Indicator and sound assist(receiver only) and upper/lower beam selection button lighten your workload while achieving perfect alignment.
- Sniper viewfinder with X2 magnification
- Double modulation
- High power quad beam
- Beam power control selector
- Upper/Lower beam selection button
| Maximum detection range | 200m |
| Maximum arrival distance | 2000m |
| etection method | Quad infrared beam interruption detection |
| Selectable beam frequency | 4 channels |
| Interruption time | Variable between 50/100/250/500 ms (4 steps) |
| Power source | Normal : 10.5 - 30 VDC |
| Current draw (MAX) (Normal & Optical alignment) | 26mA & 36mA |
| Alarm output | Form C relay : 30 VDC, 0.2 A |
| Alarm period | 2 sec (±1) (Nominal) |
| D Q output | Form C relay : 30 VDC, 0.2 A, (D.Q. and Low battery can be switched.) |
| Tamper output | N.C. (contact output) : 30 VDC, 0.1 A Opens when the cover removed. |
| Operating temperature | -35°C - +60°C |
| Operating humidity | 95% (max.) |
| Alignment angle | ±90° Horizontal, ±10° Vertical |
| Dimension H x W x D mm : | 448 x 79 x 96 |
| Weight | 2,500 g (Total weight of the transmitter + receiver, excluding accessories) |
| International protection | IP65 |
| A T P C -Automatic transmit power control | ✔ |
| Double modulation | ✔ |
| Quad beam | ✔ |
| Sniper view finder | ✔ |
| I A S C - Integrated alignment status communication | ✔ |
| LED indicator and sound assist | ✔ |
