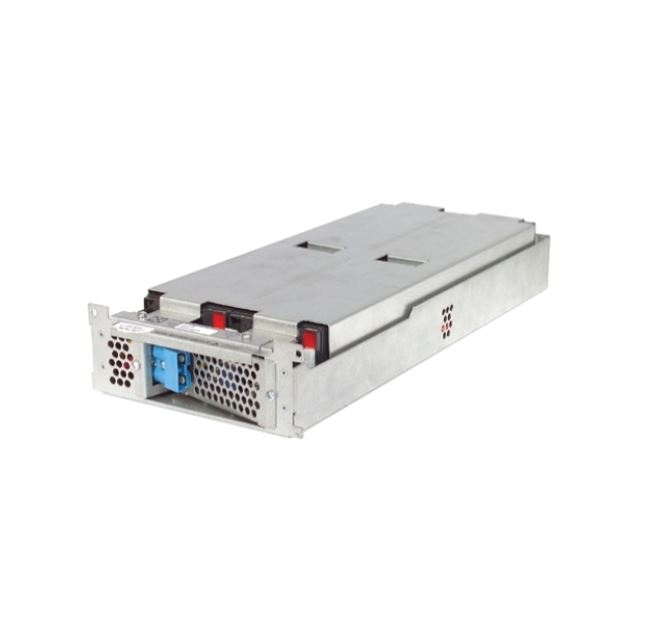

APC Replacement Battery Cartridge #43, Suitable For SMT2200RMI2U, SMT2200RMI2UC, SMT2200RMI2UNC SMT2200RMI2UC
The genuine APC Replacement Battery Cartridge (RBC) is tested and certified for 100% compatibility to the the specific APC UPS. This lead-acid RBC has a lifetime of three to five years which offers reliable support and extends the useful life of your UPS. The APC RBC comes fully assembled and ready for use. To see the compatible UPS list, please click "View Compatible UPS Models"button in "Get Support" Section at APC.com.
Product or component type Replacement battery cartridge
Number of cables 1
Battery type Lead-acid battery
provided equipment-All required connectors, Battery recycling guide, Metallic battery tray or enclosure, Reusable packaging, Installation guide
Number of battery free slots 0
Number of battery filled slots 0
Device mounting Enclosed battery cartridge
Battery voltage 48 V
Number of battery replacement quantity 1
Ambient air temperature for operation 0…40 °C
Operating altitude 0...10000 ft
Relative humidity 0…95 %
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Storage Relative Humidity 0…95 %
Mounting mode- Not rack mountable
Compatible UPS Models- SMT2200RMI2U, SMT2200RMI2UC, SMT2200RMI2UNC, SMT2200RMI2UNCITE, SMT3000RMI2U, SMT3000RMI2UC, SMT3000RMI2UNC, SMT3000RMI2UNCITE, SUM1500RMXLI2U, SUM3000RMXLI2U, SUM48RMXLBP2U

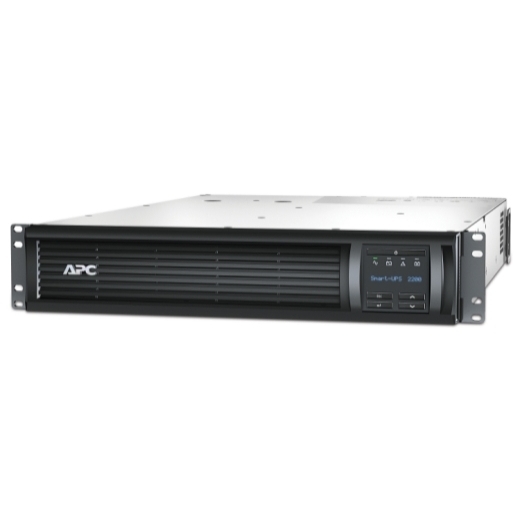

Output
• Output power capacity: 1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts): 1.98 KWatts / 2.2 kVA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for
60 Hz nominal
• Other Output Voltages: 220, 240
• Topology: Line Interactive
• Waveform type: Sine wave
• Output Connections:
◦ (8) IEC 320 C13 (Battery Backup)
◦ (1) IEC 320 C19 (Battery Backup)
• Transfer Time: 4ms typical: 8ms maximum
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
• Cord Length: 2 meters
• Input voltage range for main operations: 160 - 286 V
• Input voltage adjustable range for mains operation: 151 - 302 V
• Number of Power Cords: 1
• Other Input Voltages: 220, 240
Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended
electrolyte: leakproof
• Typical recharge time: 3 hour(s)
• Replacement Battery: RBC43
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 509
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm:
configurable delays
• Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
• Surge energy rating: 375Joules
