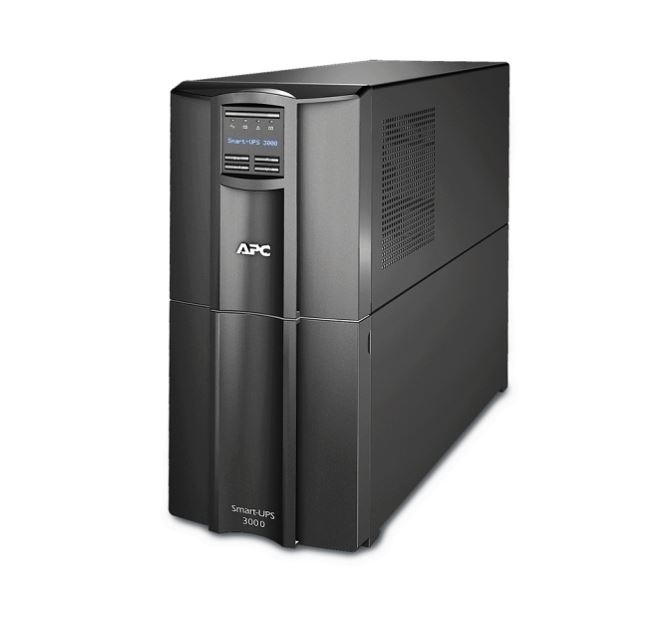

APC Smart-UPS 3000VA, Tower, LCD 230V with SmartConnect Port, Ideal Entry Level UPS For POS, Switches, ETC, 3 Year Warranty SMT3000IC
SMT3000IC Features
Key Features
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- SmartSlot
Customize UPS capabilities with management cards.
- StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Manageability
Availability
Safety
Output
• Output power capacity: 2.7 KWatts / 3.0 kVA
• Max Configurable Power (Watts): 2.7 KWatts / 3.0 kVA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for
60 Hz nominal
• Topology: Line Interactive
• Waveform type: Sine wave
• Output Connections: ◦ (1) IEC 320 C19 (Battery Backup)
◦ (8) IEC 320 C13 (Battery Backup)
• Transfer Time: 2ms typical
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Input voltage range for main operations: 160 - 286 V
• Input voltage adjustable range for mains operation: 151 - 302 V
• Number of Power Cords: 1
• Other Input Voltages: 220, 240
Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended
electrolyte: leakproof
• Typical recharge time: 3 hour(s)
• Replacement Battery: RBC55
• RBC Quantity: 1
• Extendable Run Time: 1
• Battery Volt-Amp-Hour Capacity: 816
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): SmartSlot, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm:
configurable delays
• Emergency Power Off (EPO): Yes
• Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
• Surge energy rating: 365 Joules
• Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through:
zero clamping response time: meets UL 1449
