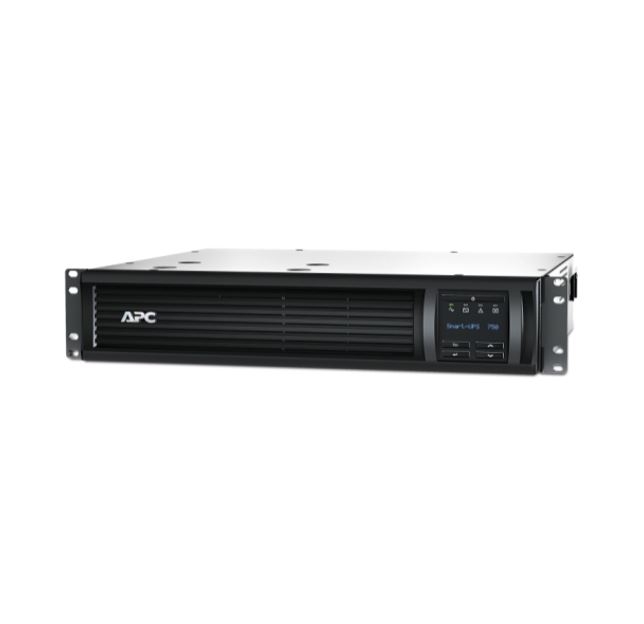

APC Smart-UPS 750VA, Rack Mount, LCD 230V with SmartConnect Port, Ideal Entry Level UPS For POS, SMT750RMI2UC
QUICK OVERVIEW
SMT750RMI2UC Features
Key Features
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Manageability
Output
• Output power capacity: 500 Watts / 750 VA
• Max Configurable Power (Watts): 500 Watts / 750 VA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220: 230 or 240 nominal output voltage
• Output Voltage Distortion: Less than 5% at full load
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Other Output Voltages: 220, 240
• Topology: Line Interactive
• Waveform type: Sine wave
• Output Connections: (4) IEC 320 C13 (Battery Backup)
• Transfer Time: 2ms typical
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Cord Length: 1.83 meters
• Input voltage range for main operations: 160 - 286 V
• Input voltage adjustable range for mains operation: 151 - 302 V
• Number of Power Cords: 1
• Other Input Voltages: 220, 240
Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time: 3 hour(s)
• Replacement Battery: APCRBC123
• RBC Quantity: 1
• Battery Volt-Amp-Hour Capacity: 168
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): RJ-45 Serial, SmartSlot, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: configurable delays
• Emergency Power Off (EPO): Optional
• Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
• Surge energy rating: 459 Joules
• Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449
