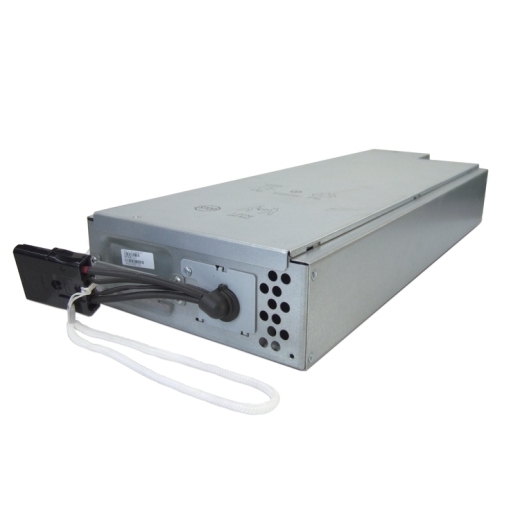

APC Replacement Battery Cartridge #117, Suitable For SMX2200R2HVNC, SMX2200RMHV2U, SMX3000RMHV2U, SMX3000RMHV2UNC
SKU
370269
Brand
MPN
SMX3000RMHV2UNC
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$5,308.00
Buy Now And Earn 5308 Reward Points!
QUICK OVERVIEW
Ideal Entry Level UPS For Switches, Inc, 3 Ye
APC Replacement Battery Cartridge 117 with 2 Year Warranty
The genuine APC Replacement Battery Cartridge (RBC) is tested and certified for 100% compatibility to the the specific APC UPS. This lead-acid RBC has a lifetime of three to five years which offers reliable support and extends the useful life of your UPS. The APC RBC comes fully assembled and ready for use. To see the compatible UPS list, please click "View Compatible UPS Models"button in "Get Support" Section at APC.com.
Product or component type Replacement battery cartridge
Battery type Lead-acid battery
Provided equipment- All required connectors, Battery recycling guide, Installation guide, Reusable packaging
Number of battery blocks per string 10
Number of battery free slots 0
Number of battery filled slots 0
Device mounting Enclosed battery cartridge
Battery voltage 120 V
Number of battery replacement quantity 1
Ambient air temperature for operation 0…40 °C
Operating altitude 0...10000 ft
Relative humidity 0…95 %
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Storage Relative Humidity 0…95 %
Mounting mode- Not rack mountable
Compatible UPS Models- SMX2200R2HVNC, SMX2200RMHV2U, SMX3000RMHV2U, SMX3000RMHV2UNC
The genuine APC Replacement Battery Cartridge (RBC) is tested and certified for 100% compatibility to the the specific APC UPS. This lead-acid RBC has a lifetime of three to five years which offers reliable support and extends the useful life of your UPS. The APC RBC comes fully assembled and ready for use. To see the compatible UPS list, please click "View Compatible UPS Models"button in "Get Support" Section at APC.com.
Product or component type Replacement battery cartridge
Battery type Lead-acid battery
Provided equipment- All required connectors, Battery recycling guide, Installation guide, Reusable packaging
Number of battery blocks per string 10
Number of battery free slots 0
Number of battery filled slots 0
Device mounting Enclosed battery cartridge
Battery voltage 120 V
Number of battery replacement quantity 1
Ambient air temperature for operation 0…40 °C
Operating altitude 0...10000 ft
Relative humidity 0…95 %
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Storage Relative Humidity 0…95 %
Mounting mode- Not rack mountable
Compatible UPS Models- SMX2200R2HVNC, SMX2200RMHV2U, SMX3000RMHV2U, SMX3000RMHV2UNC
Output
Max Configurable Power (Watts)
2.7kWatts / 3.0kVA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
208 V, 220 V, 240 V
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
2-4 ms
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
140 - 280V
Number of Power Cords
1
Other Input Voltages
220 V, 240 V
Transfer Time
2-4 ms
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
245 Watts
Extendable Run Time
1
Extended Run Options
Runtime
Efficiency
Communications & Management
Interface Port(s)
RJ-45 Serial, SmartSlot
Pre-Installed SmartSlot™ Cards
Control panel
LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
645Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
85MM, 8.5CM
Maximum Width
432MM, 43.2CM
Maximum Depth
667MM, 66.7CM
Net Weight
37.32KG
Shipping weight
45.36KG
Shipping Height
243MM, 24.3CM
Shipping Width
596MM, 59.6CM
Shipping Depth
869MM, 86.9CM
Color
Black
Pallet Dimensions
39.37inches
# of Layers per Pallet
4.0
# of Units per Layer per Pallet
2.0
Pallet Weight
856.91lbs.
Units per Pallet
8.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
184.0BTU/hr
