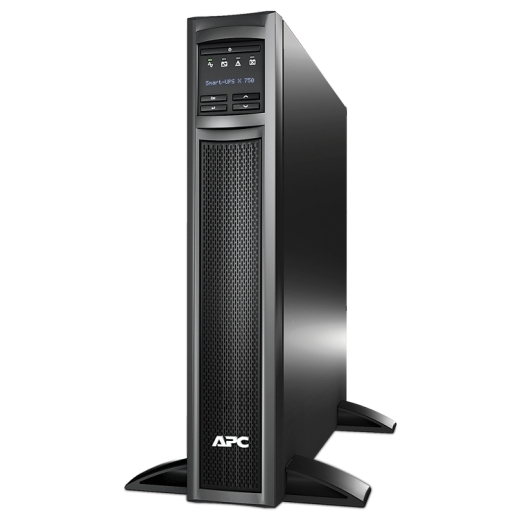

APC Smart-UPS X 750VA Rack/TowerR LCD 230V with Networking Card, 600W, 8x IEC C13 Sockets, SMX750I
QUICK OVERVIEW
SMX750I Features
Key Features
- Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- High online efficiency
Reduces utility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Scalable runtime
Allows additional run time to be quickly added as needed.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Manageability
Output
• Output power capacity: 600 Watts / 750 VA
• Max Configurable Power (Watts): 600 Watts / 750 VA
• Nominal Output Voltage: 230V
• Output Voltage Distortion: Less than 5%
• Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
• Topology: Line Interactive
• Waveform type: Sine wave
• Output Connections: (8) IEC 320 C13 (Battery Backup)
Input
• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Input voltage range for main operations: 160 - 286 V
• Input voltage adjustable range for mains operation: 151 - 302 V
• Number of Power Cords: 1
• Other Input Voltages: 220, 240
Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended
electrolyte: leakproof
• Included Battery Modules: 1
• Typical recharge time: 3 hour(s)

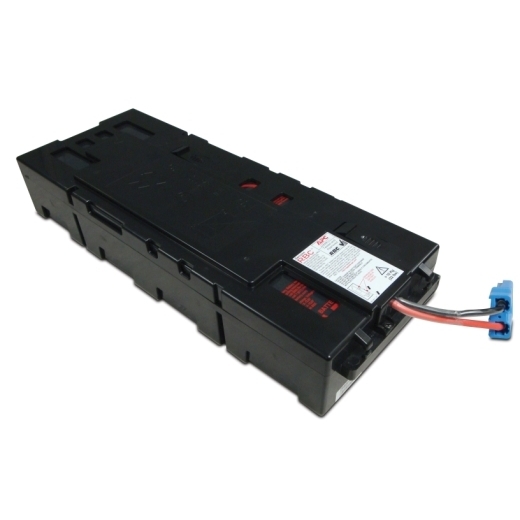

• Replacement Battery: APCRBC116
• Battery Slots Empty: 1
• RBC Quantity: 1
• DC Overcurrent Protection: 60 A
• Battery Volt-Amp-Hour Capacity: 312
• Extended Run Options: APC-Smart-UPS-X-750VA-Rack-Tower-LCD-230V
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): SmartSlot, USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload
continuous tone alarm
• Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
• Surge energy rating: 645 Joules
• Filtering: Full time multi-pole noise filtering: 0.3% IEEE surge let-through:
zero clamping response time: meets UL 1449
