Sony Srg120dh Fhd Ip Control Vc Camera Srg120dh

Rated /5 based on customer reviews

SKU: 205707

Brand: Sony

Manufacturer Link

MPN: SRG120DH

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$2,596.00
Buy Now And Earn Reward Points!
Qty:

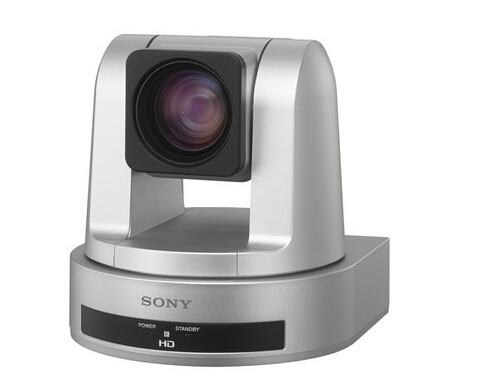

What do you look for in a PTZ camera? If your answer is stunning image quality coupled with smooth robotic control at an affordable price, take a look at Sony’s new SRG Camera Series. The new SRG series joins Sony’s widely used EVI and BRC product lines, giving customers a greater choice of high-quality remote camera options. The SRG-120DH is a desktop 1080p/60 HD PTZ camera with a 12x optical zoom and built-in IP control. It incorporates Sony’s high sensitivity 1/2.8-type Exmor™ CMOS sensor with the latest imaging technology and field-proven operability. The SRG-120DH is equipped with several new features including View-DR processing to master the harshest lighting conditions as well as the industry recognized VISCA™ protocol and built-in IP control. It also feaures an extremely wide wide of view (71 degrees). Controller options available include the CPITV4S, RM-BR300 and RMIP10 joystick controllers. The SRG-120DH is available in a silver housing and is ideal for videoconferencing and remote monitoring applications.

Highlights:

  • High Image Quality: The SRG cameras incorporate Sony’s high-sensitivity 1/2.8 -type Exmor CMOS sensor and the latest View-DR™ technology. Also their 60p shooting capability realizes smooth, reduced blur life-like images.
  • View-DR (Wide Dynamic Range) Feature: View-DR provides extremely wide dynamic range with Sony’s full-capture Wide-D technology - utilizing the Exmor™ CMOS sensor’s high-speed readout capability and Visibility Enhancer (VE) that provides a high level of chrominance and luminance. Achieves up to 130dB. (29.97fps)
  • XDNR™ Technology: XDNR technology reduces noise and provides clear images in both moving and still objects under low light conditions.
  • Camera Control: VISCA over IP technology allows for easy control of camera over IP connection.
Camera Specifications Detail:
Image Device 1/2.8 Exmor CMOS
Lens 12x Optical/12x Digital Zoom Lens
Focal Length - 3.9 mm (wide) to 46.8 mm (tele)
F1.8 to 2.0
Minimum Object Distance 10mm (wide end) / 1500mm (tele end)
Shutter Speed 1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50 Hz system)
White Balance Auto, Indoor, Outdoor, One-push auto, ATW, Manual
Pan Angle/Speed Angle: +/- 100 degrees
Speed: 300 degrees /sec.
Tilt Angle/Speed Angle: +25 degrees / -25 degrees
Speed: 126 degrees / sec
Horizontal Viewing Angle 71 degrees (wide)
Preset Positions 16 presets

?

Interface Specifications Detail:
Camera Control Interface VISCA protocol with built-in IP control
Camera Control Interface: RJ-45 / RS-232C

?

Video Output Specifications Detail:
Minimum Illumination 1.8 lx (50 IRE, F1.8, 30 fps)
S/N Ratio 50 dB
Video Output HDMI
Signal System 1080/59.94p, 50p, 29.97p, 25p
1080/59.94i, 50i
720/59.94p, 50.29.97p, 25p

?

General Specifications Detail:
Dimensions (W x H x D) 153 x 156 x 153 mm (6-1/8 x 6-1/4 x 6-1/8 inches)
Weight 1.45kg (3 lbs. 3.1 oz)
Power Requirements DC 12V (DC10.8 - 13.2V)
Power Consumption 16.8W
Operating Temperature 0°C to +40°C (32°F to +104°F)
Storage Temperature -20°C to +60°C (-4°F to +140°F)
The SRG-120DH is a desktop PTZ camera that captures high-quality colour video images in corporate boardrooms, lecture theatres and training suites. Controlled remotely over standard IP networks, itÂ’s ideal for use as either a primary or secondary camera in a wide range of visual imaging applications, from videoconferencing to remote monitoring and telemedicine.
⚫Full HD image quality with 60fps frame rate
⚫Clearer pictures in any lighting conditions
⚫Get closer with powerful 12x optical zoom
⚫Fast, quiet PTZ operation
⚫Wide 71-degree viewing angle
⚫Versatile connectivity options
⚫HDMI compatible
⚫16 programmable presets
⚫Easy control by PC
⚫Sensor Size: 1/2.8 type Exmor CMOS
⚫Optical Zoom: 12x
⚫Pan/Tilt Angle: Pan: ± 100 ° / Tilt: ± 25 °
⚫Camera Presets: 6
⚫Signal System: Full HD 1080
⚫Day/Night ICR: No
⚫Outputs: HDMI
⚫Control: RS-232, RJ-45
⚫View-DR Technology: No
⚫Ceiling Mountable: No
⚫Colour: Silver
⚫Weight: 1.4kg
⚫Dimensions (W x H x D mm): 153 x 156 x 153
