Control 2 high-resolution dual DisplayPort computers with a single console

Native dual DisplayPort connections - no adapter required
Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
Maximum resolutions of 3840x2400 at lower refresh rates
7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
3.5mm 2-channel stereo audio and microphone
Integrated 2 port hub for USB 2.0 peripheral sharing
No driver or software installation required
OS Independent
Hotkey and push-button switching
Full plug-and-play support with USB console interfaces
User-defined scan time intervals
Audio can be switched independently
Supports hot-plug, un-plug and link status-failure detection
Supports DDC2B for monitor detection
VESA and CEA compliant
Small form factor design with rear connection ports
Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices
Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices

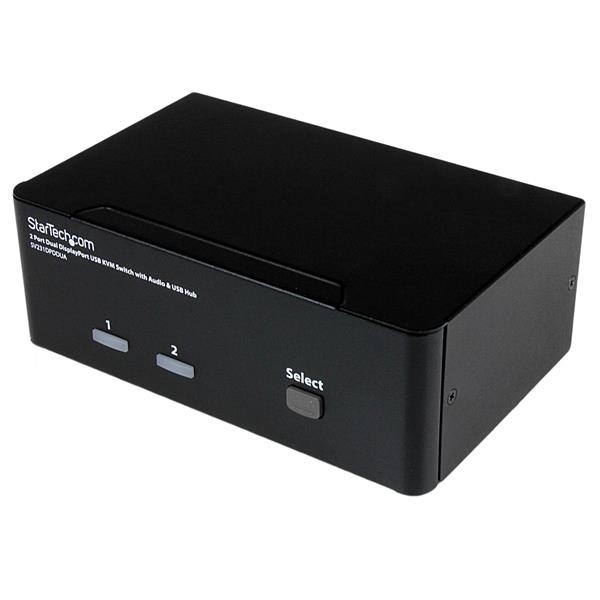

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems.
Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters
Applications

Multimedia design, multimedia post-production and video editing using Mac or PC computers
High resolution medical imaging and Health care display, such as MRI and Xray display
Stock trading stations with dual displays
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Dual system control for a single workstation increasing productivity in the office
Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
Perfect for high-res Digital Signage server control, simplifying access to multiple systems

POWERFUL 2-PORT USB DUAL DISPLAYPORT KVM SWITCH
Supporting maximum resolutions of 3840x2400 at lower refresh rates and 2560x1600 @ 60Hz resolutions (beyond 1080p), this 2-Port dual view KVM switch with native dual DisplayPort connections lets users switch between 2 dual head or twin DisplayPort systems. It features versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio. Plus, it supports DDC2B for monitor detection, and hot-plug, un-plug & link status-failure detection.

INTEGRATED 2-PORT USB HUB
Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.). It’s full plug-and-play support with USB console interfaces.

OS INDEPENDENT
Absolutely no software or drivers are required, providing a completely OS independent KVM solution. Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity.

EASY TO USE
This 2-port dual view KVM switch supports front panel push-button and keyboard hotkeys for direct channel selection and operation.
Brand
StarTech
Model
SV231DPDDUA

Details
Type
USB
PC Connectors
2 - USB B Female
4 - 20 pin DisplayPort Female
4 - 3.5 mm Audio Female
Console Connectors
2 - 20 pin DisplayPort Female
2 - 3.5 mm Audio Female
4 - USB A Female
Computer Connections
2 Ports
Video Resolution
2560 x 1600
LED Indicators
2 - Green - On-Line
2 - Red - Selected PC

Environmental
Temperature
Operating Temperature: 0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
Storage Temperature: 20 Degree C to 60 Degree C (-4 Degree F to 140 Degree F)
Humidity
0~80% RH

Features
Features
Dual Native resolutions: 2560 x 1600 @ 60Hz, beyond 1080p on each monitor
Mac and PC Compatible
Supports a maximum resolution of 3840 x 2400 at lower refresh rates on each monitor
Supports native DisplayPort computer connections - no adapter required
USB 2.0 peripheral sharing
Analog 2-channel audio and microphone supported with 3.5mm connections; 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
No driver or software installation required
Hotkey and push-button switching
Full plug-and-play support with USB keyboards, mice, and connected peripherals
User-defined scan time intervals
Supports DDC2B for monitor detection
Supports hot-plug, un-plug and link status-failure detection
USB 2.0 HUB ports and Audio can be switched independently from the selected PC
VESA and CEA compliant
Four Plug-and-Play USB console ports, including 2x dedicated peripheral (mouse and keyboard) ports and two USB 2.0 hub ports
Front-panel push-buttons as well as keyboard hotkey switching
Small form factor design with connection ports situated on the rear panel

Dimensions & Weight
Weight
2.55
