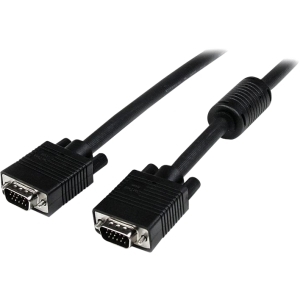

Startech 30m Coax High Resolution Monitor Vga Video Cable - Hd15 M/ M - Hd15 To Hd15 Cable - Vga
QUICK OVERVIEW
Connect your VGA monitor with the highest quality connection available. The MXTMMHQ30M High Resolution VGA Cable (30-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | MXTMMHQ30M |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | Connect your VGA monitor with the highest quality connection available. The MXTMMHQ30M High Resolution VGA Cable (30-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends. |
| Packaged Quantity: | 1 |
| Product Name: | 30m Coax High Resolution Monitor VGA Video Cable - HD15 M/M |
| Product Type: | Video Cable |
| Physical Characteristics | |
|---|---|
| Colour: | Black |
| Material: | Aluminum Mylar - Shielding |
| Polyvinyl Chloride (PVC) - Jacket | |
| Packaging Information | |
| Shipping (Package) Weight | 2.8 kg [6.1 lb] |
| Physical Characteristics | |
| Cable Length | 30 m [98.4 ft] |
| Color | Black |
| Product Length | 30 m [98.4 ft] |
| Product Weight | 2.7 kg [6 lb] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 30m Coax High Resolution Monitor VGA Cable - HD15 M/M |
| Nuts | |
| Packaging Information | |
| Package Quantity | 1 |
| Hardware | |
| Number of Ferrites | 1 |
| Number of Conductors | 14 |
| Fire Rating | CMG Rated (General Purpose) |
| Connector Plating | Nickel |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Environmental | |
| Storage Temperature | -20 to 80 ?C |
| Operating Temperature | 0 to 60 ?C |
| Humidity | 0 - 80 %RH |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Male |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
The MXTMMHQ30M High Resolution VGA Cable (30-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
