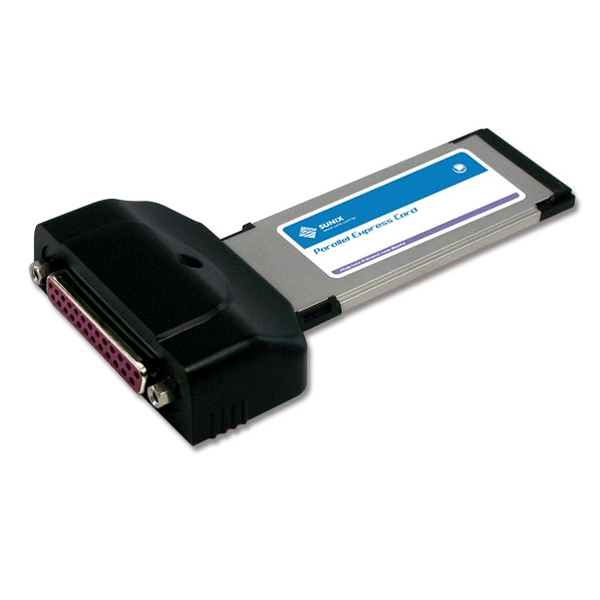

main product photo

Sunix Ecp1000 1-port Ieee1284 Parallel Expresscard Ecp1000

SKU
269673
Brand
Sunix
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$54.00
Buy Now And Earn 54 Reward Points!
Add to Compare

Features

  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Full single-lane (or x1) PCI Express throughput.
  • Compliant with ExpressCard 34 and 54mm slot.
  • High reliability SUNIX SUN1989 compatible Parallel controller on-board.
  • Expands one IEEE1284 Parallel LPT port with communication speeds up to 1.8MBps.
  • Support IEEE 1284-1994 parallel port standard with mode switch automatically.
    ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
    SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port).
  • Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Introduction

SUNIX ECP1000 was created to meet the need of the ExpressCard market where notebooks, desktops, and docking stations could add one additional IEEE1284 Parallel LPT port via a single slim-type 34/54mm ExpressCard slot. ECP1000 equips SUNIX high performance and realizable chipset, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications. Users will benefit from ExpressCard plug-n-play ease of use, which eliminates the need to open the chassis to add new features.

　

Specifications

Description
Product Description 1 port IEEE1284 Parallel ExpressCard

Serial Communication
Interface SUN1889 (Parallel Compatible)
Controller PCI Express one lane (x1)
No. of Port 1-port
IRQ & IO Assigned by System
FIFO 16 byte (Hardware)
Speed Maximum 1.8MBps
Mode SPP/ECP/EPP/BPP
PCB connector DB44 Female

Driver Support
Microsoft Client XP/Vista/7 (X86/X64)
Microsoft Server 2000/2003/2008 (X86/X64)
Microsoft Embedded XP Embedded/POS Ready 2009/ Embedded System 2009/Embedded Standard 7
Linux Linux 2.x / 3.x / 4.x
DOS DOS

　

Regulatory Approvals
Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B, RoHS
Software Microsoft WHQL Windows
◆ Microsoft Client: XP/Vista/7 (X86/X64)
◆ Microsoft Server: 2000/2003/2008 (X86/X64)

　

Environment
Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension
Iron Case 80(W) x 34(D) x 5(H) mm
Plastic Case 39(W) x 64(D) x 20(H) mm
