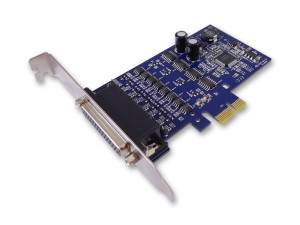

Industrial 4-port RS-232/422/485 with Surge PCI-Express Serial Card
SUNIX IPC-E3204S, Industrial 4-port RS-232/422/485 PCI-Express Serial Card, allows users to expand four RS-232/422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. SUNIX IPC-E3204S board is provided with 2KV IEC6100-4-5 Level 3 Surge Suppressor and 15KV IEC61000-4-2 ESD Discharge Transceiver. Besides, board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
- Expands 4 independent RS-232/422/485 serial ports with communication speeds up to 921.6Kbps.
- With high reliable SUNIX PCI Express UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- RS-422 and RS-485 auto detect and switching technology – jumper and software free.
- AHDC/CS™ technology for collision free communication.
- On-chip hardware auto flow control to guarantee no data loss.
- Ultra low power consumption design for Green Environment.
- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
- 2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS OS.
Serial Communication
| Interface | RS-232/422/485 | Baud rate | 50bps ~921.6Kbps |
| Controller | SUNIX SUN2410 (16C950 UART Compatible) | Stop bit | 1, 1.5, 2 |
| BUS | PCI Express 2.0 x 1 (single lan) | Parity | even, odd, none, mark, space |
| No. of Port | 4-port | Flow Control | Xon/Xoff (software) |
| IRQ & IO | Assigned by System | FIFO | 128byte Hardware |
| Signal | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI RS-422: TxD+, TxD-, RxD+, RxD-, GND 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND 2-wire RS-485: Data+, Data-, GND | ||
| Protection | ±15KV ESD IEC6000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±4KV ESD IEC61000-4-2 Level 2 Line-to-Line 2KV Surge IEC61000-4-5 Level 3 Surge Immunity Test | ||
| PCB Connector | DB44 Female | ||
Driver Support
| Windows Client | XP/Vista/7/8/8.1 (X86/X64) |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) |
| Windows Embedded | Windows CE 4.2/5.0/6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux | Linux 2.4.x/2.6.x/3.x |
| DOS | DOS |
Regulatory Approvals
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software | Microsoft WHQL Windows • Windows Client: XP/Vista/7/8/8.1 (X86/X64) • Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) |
Environment
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 107x 68 mm |
| Bracket | Standard 121mm |
| Bracket Space | 1 |
