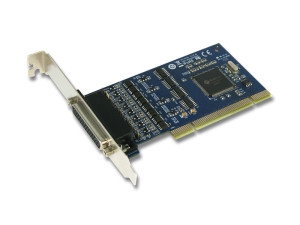

Sunix Ipcp3104 Pci 4-port 3 In 1 Rs 232/ 422/ 485 Card With Db9m Connector Ipcp3104
IPC-P3104
4-port Industrial RS232 / 422/485 PCI communication card
SUNIX IPC-P3104, industrial standard universal PCI serial communication card, allows users to expand four RS-232/422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC™ technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. Under RS-485 mode, the board can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. SUNIX serial board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
- Expands 4 independent RS-232/422/485 serial ports with communication speeds up to 921.6Kbps.
- High reliability SUN1999 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver 3.0, 2.3, 2.2 & 2.1 specifications.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- RS-422/485 auto detect and switching technology – jumper and software free.
- AHDC/CSTM technology for collision free communication.
- Ultra low power consumption design for Green Environment.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
- Support Microsoft Windows, Linux, and DOS.
Description | |
| Product Description | 4-port RS-232 / 422 / 485 Universal PCI Board |
Serial Communication | |
| Interface | RS-422/485 |
| Controller | SUNIX SUN1999(16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 4-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI RS-422: TxD+, TxD-, RxD+, RxD-, GND 4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND 2-wire RS-485: Data+, Data-, GND |
| Baud rate | 50 bps to 921.6 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | Xon/Xoff (software) |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |
| PCB connector | DB44 Female |
Driver Support | |
| Windows Client | XP/Vista/7/8/8.1 (X86/X64) |
| Windows Server | 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) |
| Windows Embedded | Windows CE 4.2/5.0/6.0 XP Embedded / POSReady 2009 / POSReady 7 / Embedded System |
| Linux | Linux 2.4.x / 2.6.x / 3.x |
| DOS | DOS |
| FreeBSD | FreeBSD 5.3~5.5 / 6.0~6.4 |
| QNX | QNX 6.3.2/6.4.0 |
Regulatory Approvals | |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS |
| Software | Microsoft WHQL Windows • Windows Client: XP/Vista/7/8/8.1 (X86/X64) • Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) |
Environment | |
| Operation Temperature | 0 to 70°C (32 to 158°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension | |
| PCB Dimension | 120 x 62 mm |
| Bracket | Standard 121 mm / Low Profile 80 mm |
| Bracket Space | 1 |
