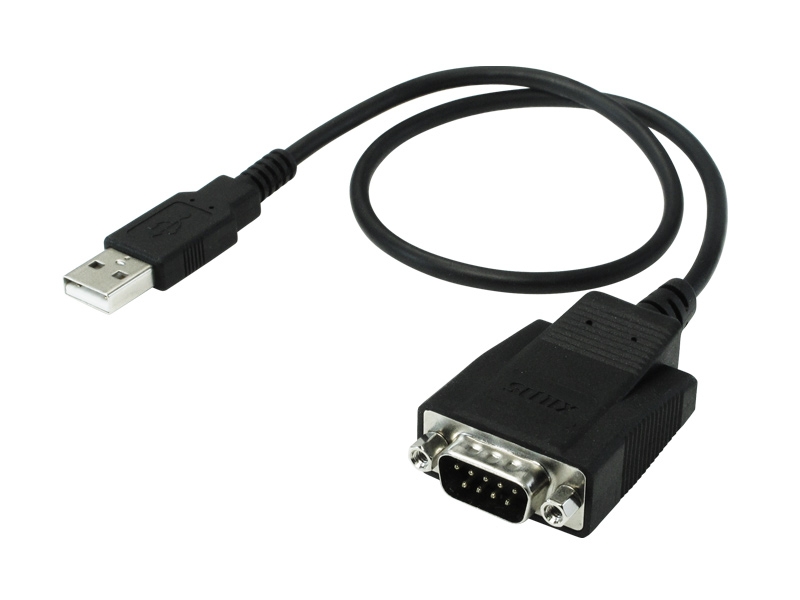

Sunix Usb To Db9/ Rs232 Serial Converter 35cm Cable Utd1009df

SKU
269683
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$32.00
Buy Now And Earn 32 Reward Points!
  • Expands one independent RS-232 serial port through USB interface.
  • Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
  • No IRQ, DMA, I/O address resource required.
  • Supports USB 2.0 and USB 1.1 compatible.
  • Serial port provides transmission rate up to 115.2Kbps.
  • Built-in ± 15KV ESD protection for all serial signals.
  • Compact Size and low power consumption.
  • Supports USB bus power without additional external power.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows and Linux.

Introduction

SUNIX ComHub UTS series transform your Universal Serial Bus (USB) port into asynchronous RS-232 serial ports for communication with serial devices. The UTS1009DF adapter is compatible with both USB 2.0 and 1.1 specifications and provides serial port with transfer speed up to 115.2Kbps. It provides a quick, simple and cost-effective way to bring the advantages of data accessibility and mobile solution for kinds of commercial and industrial automation applications.



Specifications

Serial Communication

Interface RS-232 Baud rate 50bps ~115.2Kbps
Controller
FTDI  FT232RL
Data bit 5, 6, 7, 8
BUS Universal Serial Bus (USB) Stop bit 1, 1.5, 2
No. of Port 1-port Parity even, odd, none, mark, space
IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
FIFO
128 Byte - TX
256 Byte - RX
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
PCB Connector DB9 Male with Screw Nut

Power

Power Source USB Bus Power +5VDC (±5%)
Standby Power Consumption <100mA / 5VDC
Working Power Consumption <150mA / 5VDC

Driver Support

Windows Client XP / 7 / 8.x / 10 (X86/X64)
Windows Server 2008R2 / 2012R2 (X64)
Windows Embedded CE4.2 / 5.2 / 6.0 / 7.0 / 2013
Linux Linux 2.6.x or later

Regulatory Approvals

EMC
EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
JAPAN: VCCI
Green RoHS, CRoHS, WEEE

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 15 x 45 x 33 mm
Cable Length  350mm (1.14ft)
