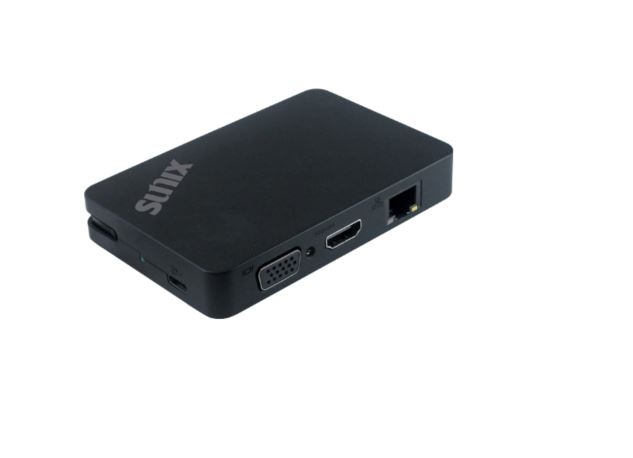

Sunix USB Type C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Delivery2.0 CCV51PB

SKU
294868
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$54.00
Buy Now And Earn 54 Reward Points!

Introduction

SUNIX portable Mini Dock (CCV51PB) offers the combined functionality of a 4-in-1 USB3.0 device docking station, converting a single USB-C port into multiple connection ports, including a HDMI UHD (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type-C equipped laptop to a complete workstation.

HDMI2.0/VGA/Ethernet/USB3.0 connects your USB-C equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB Type-C tethered cable. This small, multiple-interfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®-based PC, Apple® MAC®-OS, and Google® Chrome operation system.

Features

UNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Interfaces

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

HDMI or VGA Video Output

Use either the HDMI port or VGA port for video output & office presentation.

SUNIX Portable Mini Dock (CCV50PB) is a 4­-in-­1 device docking station, including HDMI/VGA/Ethernet/USB 3.0 connectivity. This small, multiple­interfaces, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB

Hideaway USB-C Cable with Patented 180° Hinge Design

Compact size and light weight


Application


Hardware

Model CCV51PB
Description USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Delivery2.0
USB Standard USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface
USB Type­C
USB Type-C Displayport Alternate Mode
Output Interface USB Power Delivery Type­-C x 1-­port
USB 3.0 Type­A x 1­-port
Gigabit Ethernet x 1-­port
VGA(RGB) x 1­-port
HDMI Ver1.4 x 1-­port
LED indicator
Green for USB Link Ready with USB Bus Power Mode
Blue for USB Power Charging Mode
Power Consumption USB Bus Power 2.5W @ 5VDC
(board only without power output to device)

USB Communication

Interface USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port USB Type­-A Female Receptacle
USB 3.0(5Gbps), High Speed(480Mbps),
Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port 1­-port
Power source
USB Bus-Power 5V@1.5A from USB Type-C
USB Power Delivery 2.0 : 5/20VDC
Power output USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection USB Type­A Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard IEEE 802.3/ 802.3u/ 802.3ab
Interface Gigabit Ethernet
10/100/1000 Mbps with Auto MDIX
No. of Port 1­port
PCB Connector RJ45 with LED Indication

Video and Audio Communication

Mode Extend mode, Mirror mode, Screen Rotation mode
Standard HDMI Ver1.4
VGA RGB
Video
HDMI1.4 resolution up to 3840x2160@30Hz*
VGA resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.
HDMI1.4 Resolution support
Resolution Name Refresh Rate
640x480 VGA 60
800x600 SVGA 60
1024x768 XGA 60
1280x720 720p 60
1280x768 WXGA+ 60
1280x800 WXGA 60
1280x1024 SXGA 60
1366x768 WXGA+ 60
1400x1050 SXGA+ 60
1600x1200 UXGA 60
1680x1050 WSXGA+ 60
1920x1080 1080p Full HD 60/120
1920x1200 WUXGA 60
2048x1152 QXGA 60
2560x1600 WQXGA 60
3840x2160 UHD 30
VGA Resolution Support
Resolution Name Refresh Rate
640x480 VGA 60
800x600 SVGA 60
1024x768 XGA 60
1280x720 720p 60
1280x768 WXGA+ 60
1280x800 WXGA 60
1280x1024 SXGA 60
1366x768 WXGA+ 60
1400x1050 SXGA+ 60
1600x900 - 60
1600x1200 UXGA 60
1680x1050 WSXGA+ 60
1920x1080 1080p 60
1920x1200 WUXGA 60
Audio Digital Audio output over HDMI connectivity
Note: VGA does not support audio output
PCB Connector Standard HDMI Female x 1-­port
VGA D­-Sub 15­pin Female x 1-­port

Driver Support (Driver Free)

Windows Windows 10 (32/64­bit) or above
APPLE MAC MAC OS X 10.10 (Yosemite) or above
Google Chrome Chrome OS Version 42.x or above
