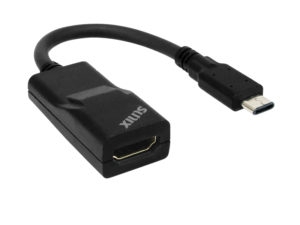

Sunix Usb Type C To Hdmi 2.0 Adapter (support 4k @ 60hz Active Controller) C2hc3m0

SKU
269684
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

Special Price $27.00 Regular Price $31.00
Buy Now And Earn 27 Reward Points!

C2HC3M0



USB Type-C to HDMI 2.0 4K60Hz UHD Active Adapter





SUNIX C2HC3M0, USB Type-C video Adapter lets you connecting your USB 3.1 Type-C source device featuring DisplayPort™ Alternate Mode to an HDMI 2.0 enabled UHD monitor, television, projector or other compatible display in up to UHD 2160p (3840×2160) and 1080p (1920x1080P) at 60Hz.

The USB3.1 Type-C to HDMI2.0 UHD Adapter supports all USB 3.1 Type-C devices with DisplayPort™ Alternate mode and operating systems, including Apple OS X, Windows and Google Chrome OS. With ultra-compact, highly-portable, and no external power needed design, this video adapter is the best travel accessories of notebooks and Ultrabooks.

  • Adapts USB Type-C equipped laptops to work with HDMI-enabled displays.
  • Integrated active chip to provide a HDMI 2.0 conversion from USB-C Type port.
  • Compliant with VESA DisplayPort Alternate Mode for USB Type-C standard.
  • Video resolution up to UHD 2160p at 60Hz and FHD 1080p at 120Hz.
  • High-definition digital audio output over HDMI channel.
  • Plug-&-play, driver free, and no external power needed.
  • Support Apple MAC, Google Chromebook and Microsoft Windows OS.
  • Certified by Electromagnetic Compatibility (CE, FCC, VCCI, C-Tick, BSMI) and RoHS approval.








  • Compliant with VESA DisplayPort Alternate Mode for USB-C Standard.

  • Driver free under Apple OSX, Google Chrome and Microsoft Windows

  • Suitable for HDMI 2.0-enabled TV, monitor and projector

  • The new HDMI 2.0 feature

  • Connect a HDMI 2.0 monitor to an USB-C equipped laptop / mobile device

  • USB Type-C Reversible Design

  • Shielding Case’s anti-jamming capability gives high quality signal

Specifications

Model C2HC3M0
Description USB Type-C to HDMI 2.0 4K60Hz UHD Active Adapter
Input Interface
USB Type­C
USB Type­C Alternate Mode
Output Interface
HDMI Ver2.0
Standard HDMI Female
Power
USB Bus Power
+5VDC @ 250mA
Display Resolution
Resolution
Name
Refresh Rate
640×480
VGA
60 Hertz
800×600
SVGA
60 Hertz
1024×768
XGA
60 Hertz
1280×720
720p
60 Hertz
1280×768
WXGA+
60 Hertz
1280×800
WXGA
60 Hertz
1280×1024
SXGA
60 Hertz
1366×768
WXGA+
60 Hertz
1400×1050
SXGA+
60 Hertz
1600×1200
UXGA
60 Hertz
1680×1050
WSXGA+
60 Hertz
1920×1080
1080p Full HD
60 / 120Hertz
1920×1200
WUXGA
60 Hertz
2048×1152
QXGA
60 Hertz
2560×1600
WQXGA
60 Hertz
3840×2160
2160p UHD
60 Hertz
4096×2160
4K++
60 Hertz
Audio 8-Channel Digital Audio

Driver Support

Driver free under
Apple MAC, Google Chrome, and Microsoft Windows

Environment

Operation temp. 0 °C ~ 60 °C (32­140°F)
Operation humidity: < 85% non­condensing
Storage temp. ­10 °C ~ 85 °C (14~176°F)

Regulatory Approvals

EUR: CE, EN55022 Class B, EN55024, EN61000­3­2, EN61000­3­3
US: FCC Part 15 Class B
TAIWAN: BSMI: CNS13438
AS/NZS: C­Tick: CISPR22
JAPAN: VCCI
Green Environment RoHS, CRoHS, WEEE
Housing ABS(Plastic)

Dimension

46(L) x 22(W) x 13.2(H) mm
USB­C Cable length 80mm
Weight 25g (0.8oz)
