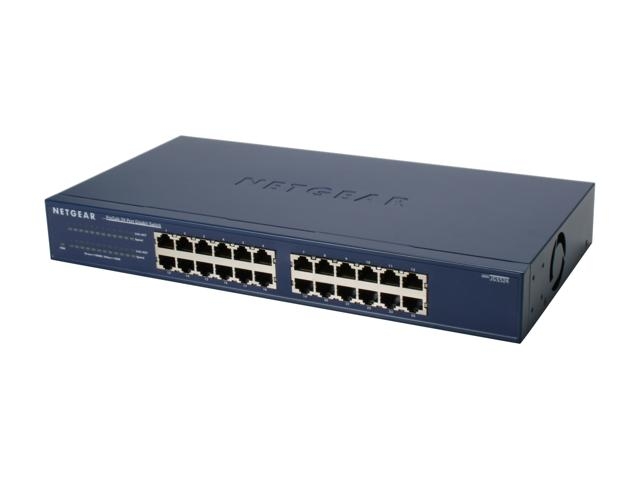

Netgear Switch: (au) 24 Port Switch 10/ 100/ 1000 Rackmount Jgs524(giga-switch) Jgs524au

SKU
239853
Brand
Netgear
Manufacturer Link
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare
  • neweggGIGABIT NETWORK CONNECTIVITYThe Netgear JGS524 integrates 1000Mbps Gigabit Ethernet technology that provides a tenfold increase over 100M Fast Ethernet and a hundredfold increase over 10M Ethernet, to raise the speed and performance threshold for a converged network.
  • neweggHALF/FULL-DUPLEX SUPPORTWith full-duplex support, the Netgear JGS524 works at a maximum 2000Mbps on each port (doubling the speed of normal half-duplex devices), and is also compatible with half-duplex mode.
  • newegg24 AUTO-SENSING PORTSThe Netgear JGS524 features 24 RJ45 ports with automatic speed and duplex sensing capability, so you can easily combine 10 Mbps, 100 Mbps, or 1000Mbps devices, running at either half or full duplex mode.
  • neweggCOMPACT DESIGNThe Netgear JGS524 comes in a compact size for desktop use or for mounting in a standard 19-inch rack.

Model

Brand
NETGEAR
Series
ProSafe
Model
JGS524

Format & Standards

Format
Rackmount
Standards
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
Network Management Type
Unmanaged

Ports & Interface

Uplink Ports
None
Primary Ports
24 x RJ45
Primary Port Speed
10/100/1000Mbps

Data Transmission

MAC Address Table
8,000
VLAN Support
No
Jumbo Frames
Yes

Details

Buffer Memory
2MB
PoE
No
Stackable
No
SNMP
No
QoS
No
LACP
No
Layer
Layer 2 Only
Port Mirroring
No
Module Support
No
LEDs
Unit: power
Per network port: Link, Activity, Speed
Power
100~240V; 50-60Hz; plug is localized to country of sale

Features

Features
Switching bandwidth: 48 gigabit per sec
Forward rate (1000 Mbps port): 1,480,000 packets per sec
Forward rate (100 Mbps port): 148,000 packets per sec
Forward rate (10 Mbps port): 14,800 packets per sec
Mean Time Between Failure (MTBF): 87,600 hours

Powerful, non-blocking backplane
Affordable enough for desktop connections

For ProSafe Lifetime Warranty please see: http://www.netgear.com/warranty
Power Adapter Warranty : 2 years

Dimensions & Weight

Dimensions
13.0" x 8.2" x 1.7"
Weight
5.3 lbs.

Environmental

Temperature
0ºC to 40ºC (32ºF to 104ºF)
Humidity
90% Maximum, Non-condensing

Packaging

Package Contents
JGS524
Installation Guide
Power Cord
Rack mount kit
Screws
