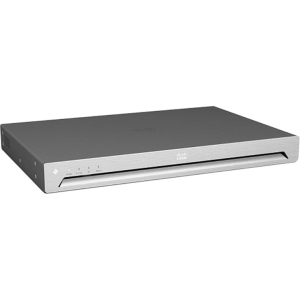

Cisco Sx80 W/ Ip60 Cts-sx80-ip60-k9
No Longer Available
The Cisco TelePresence SX80 Codec (SX80 Codec) provides a powerful and flexible platform for creating the ultimate video collaboration experience. The SX80 Codec was built with the integrator in mind, enabling flexibility and creativity for customized video collaboration rooms that delight the customer. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, boardrooms and purpose-built or vertical application rooms.
The SX80 delivers up to a 1080p60 end-to-end high definition (HD) video and offers industry-first support for H.265, which lays the foundation for future bandwidth efficiencies made possible by the new standard. The codec offers a rich input and output set, flexible media engine and support for three screens enable a variety of use cases, adaptable to your specific needs. The SX80 now supports cloud registration to Cisco Spark Services for even faster and more cost effective deployment1.
The SX80 Codec also supports several sophisticated camera features to enable intelligent viewing capabilities within a video conference:
● SpeakerTrack 60 dual camera system – features a unique direct, fast-switching approach for active speaker tracking
● PresenterTrack2 – an industry-first feature, supports automatic detection and tracking of the presenter at the front of a video conferencing room, dynamically following the presenter from seated to stand-up position within a defined trigger area so they can move about more freely (requires additional Cisco TelePresence Precision 60 Camera)
| Feature Summary | |
| Design features | ● One of the most powerful and feature-rich codecs available with the ultimate in video and audio quality ● The next generation HD video collaboration codec ● 1 rack unit (1RU) high, rack-mountable, with rack-mounting solution included ● Professional-grade connectors ● Unmatched quality and flexibility ● Standards-compliant 1080p solution - compatible with standards-based video without losing features |
| Application features | ● Supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from Macs and PCs3 ● Supports Switched Conferencing (SVC) for enhanced layouts and enabling video on both screens of dual screen endpoints3 ● Easily control room peripherals such as lights, room dividers, curtains, directly from the Cisco TelePresence Touch 10 through customizable API2 (requires external third-party control system processor) ● 1080p30 HD embedded Cisco TelePresence MultiSite with individual transcoding ● Collaborate with four simultaneous video inputs ● HD collaboration with 1080p60 video and 1080p30 content ● One button to push (OBTP) to start a meeting ● Limitless integration possibilities ● Ideal for team-based collaboration, boardrooms, meeting rooms, and industry applications |
| Performance features | ● Optimal definition up to 1080p60 ● H.323/SIP up to 10 Mbps point-to-point ● Up to 10 Mbps total MultiSite bandwidth ● Ability to connect up to four HD sources and 8 microphones directly to the codec ● Full duplex audio with high-quality stereo sound ● Full application programming interface (APIs) ● Ability to take advantage of Cisco TelePresence Total Solution Management, transcoded HD MultiSite, recording and streaming, and firewall traversal ● Cisco TelePresence ClearPath packet loss protection technology for optimal experience ● Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager version 8.6 or higher) |
| Audio | |
|---|---|
| Audio Encoding: | G.711 |
| Display & Graphics | |
|---|---|
| Maximum Frame Rate: | 60 fps |
| General Information | |
|---|---|
| Brand Name: | Cisco |
| Manufacturer Part Number: | CTS-SX80-IP60-K9 |
| Manufacturer Website Address: | http://www.cisco.com |
| Manufacturer: | Cisco Systems, Inc |
| Package Contents: |
|
| Product Line: | TelePresence |
| Product Model: | SX80 |
| Product Name: | SX80 Codec, Precision 60 Camera, and Touch 10 |
| Product Series: | SX |
| Product Type: | Video Conference Equipment |
| Media & Performance | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 10/100/1000Base-T |
| Network | |
|---|---|
| Network Technology: | 10/100/1000Base-T |
| Physical Characteristics | |
|---|---|
| Depth: | 309.9 mm |
| Form Factor: | Rack-mountable |
| Height: | 43.2 mm |
| Weight (Approximate): | 3.65 kg |
| Width: | 442 mm |
| Product Information | |
|---|---|
| Form Factor: | Rack-mountable |
| Width: | 442 mm |
| Video | |
|---|---|
| Graphics Modes (Live): | WUXGA |
| Maximum Frame Rate: | 60 fps |
| Maximum Video Resolution (Live): | 1920 x 1080 |
| Video Encoding: | H.261 |
| Video System: | NTSC/PAL |
| Marketing Text | The Cisco TelePresence SX80 Codec provides a powerful and flexible platform for creating the ultimate video collaboration experience. The SX80 Codec was built with the integrator in mind, enabling flexibility and creativity for customized video collaboration rooms that delight the customer. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, boardrooms and purpose-built or vertical application rooms. |
| PI Date | Oct 2014 |
| Brand Name | Cisco |
| Manufacturer Web Site | http://www.cisco.com |
| Product Line | TelePresence |
| Product Type | Video Conference System |
| Product Model | SX80 |
| Video Features | * Advanced screen layouts * Custom video layouts * Local auto layout |
| Audio Features | * CD quality 20 kHz mono and stereo * Eight separate acoustic echo cancellers * Eight-port audio mixer * Eight assignable equalizers * Automatic Gain Control (AGC) * Automatic noise reduction * Active lip synchronization |
| Camera Type | HD Camera |
| User Interface | Touch Screen |
| Communication | 10/100/1000 |
| Depth (mm) | 309.8 |
| Height (mm) | 44.0 |
| Width (mm) | 442.0 |
| Weight (Kg) | 3.7 |
| Operating Temperature | 0 to 40°C |
| Power | 170Watt |
| Network Features | * DNS lookup for service configuration * Differentiated Services (QoS) * IP adaptive bandwidth management * Auto gatekeeper discovery * Dynamic playout and lip-sync buffering * H.245 DTMF tones in H.323 * Date and Time support via NTP * Packet Loss based downspeeding |
| Security | * Management through HTTPS and SSH * IP administration password * Menu administration password * Disable IP services * Network settings protection |
| Other Features | * One of the most powerful and feature rich codecs available with the ultimate in video and audio quality * The next generation HD video collaboration codec * 1 rack unit (1RU) high, rack mountable, with rack-mounting solution * Professional-grade connectors * Unmatched quality and flexibility |
