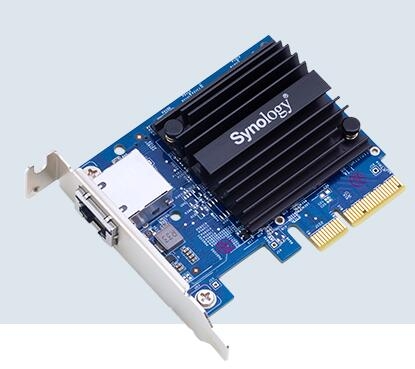

Synology E10g18-t1 10gbe Single Ethernet Adapter Card For Rs3614xs+ Rs3614 (rp) Xs Rs10613xs+ Rs3413xs+

SKU
266360
Brand
Synology
Manufacturer Link
MPN
E10G18-T1
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$263.00
Buy Now And Earn 263 Reward Points!

QUICK OVERVIEW

E10G18-T1
Add to Compare

Flexible and economic solution for 10GbE adoption

Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.

5 year warranty

Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.

General Specifications
Standards
  • IEEE 802.3an 10Gbps Ethernet
  • IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3x Flow Control
Data Transfer Rates 10 Gbps
Network Operation Mode Full Duplex
Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
Applied Models
  • FS3017
  • FS2017
  • FS1018
  • RS18017xs+
  • RS18016xs+
  • RC18015xs+
  • RS10613xs+
  • RS4017xs+
  • RS3617xs+
  • RS3614xs+
  • RS3413xs+
  • RS3618xs
  • RS3617RPxs
  • RS3617xs
  • RS3614(RP)xs
  • RS3412(RP)xs
  • RS3411(RP)xs
  • DS3617xs
  • DS3615xs
  • DS3612xs
  • DS3611xs
  • DS3018xs
  • RS2818RP+
  • RS2418(RP)+
  • RS1219+
  • RS818(RP)+
  • DS1817+
  • DS1618+
  • DS1517+
Note DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)
Hardware Specifications
PCIe Interface PCIe 3.0 x4
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 86.0 mm x 68.1 mm x 13.6 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
Synology E10G18-T1 equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBase-T/NBase-T) and 802.3x,E10G18-T1 helps you smoothly migrate to a 10Gbe networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps , 2.5Gbps , 1Gbps and 100Mbps data rate, E10G18-T1 is an economic solution to overcome the data transmission bottlleneck for small businesses and home users.Specs: *IEEE 802.1Q VLAN Tagging*IEEE 802.3x Flow Control*IEEE 802.3ae 10Gbps Data Transfer Rates: 10GbpsNetwork Operation Mode: Full Duplex (20 Gbps)Supported Features :*9KB Jumbo Frame*Simple Network Management Protocol (SNMP) Agent*IEEE 802.3ad Link Aggregation Support*TCP/UDP/IP Checksum OffloadingSupported OS:Synology Diskstation Manager (DSM) 5.1 and onward.Supported Models :RS3614xs+,RS3614(RP)xs,RS10613xs+,RS3413xs+
