Synology Rks1317 Sliding Rail Kit For 1u 2u And 3u Nas Systems Rs2416 Rs2418+ Rs816 Rks1317
SKU
269719
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$169.00
Buy Now And Earn 169 Reward Points!

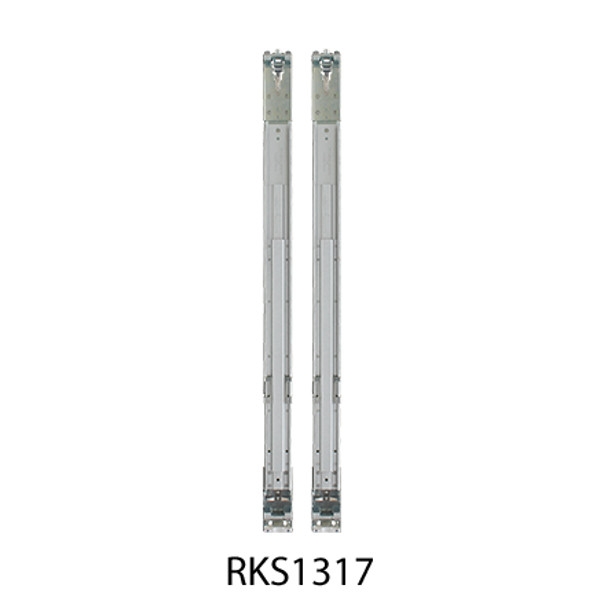

Synology Rail Kit RKS1317 (Rail Kit Sliding) comes with sliding rails for easy server maintenance, and supports most Synology 1U/2U/3U RackStation models. RKS1317 is backed with Synology's 1-year limited warranty.
Physical specifications for Synology RKS1317
- Mount post width must be equal to or greater than 451mm
- Panel width must be equal to or greater than 480mm
- Rack mounting depth: 610mm to 890mm
- Rack mounting hole support:
square hole: at least 9.5mm x 9.5mm
round hole: at least 7.1mm x 7.1mm
Applied Models
- 19-series: RS1619xs+, RS1219+
- 18-series: RS3618xs, RS2818RP+, RS2418(RP)+, RS818(RP)+, RX418
- 17-series: FS3017, FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617(RP)xs, RX2417sas, RX1217sas, RX1217(RP)
- 16-series: RS18016xs+, RS2416(RP)+, RX1216sas, RS816
- 15-series: RC18015xs+, RXD1215sas, RS815(RP)+, RS815, RX415
- 14-series: RS3614xs+, RS3614(RP)xs, RS2414(RP)+, RS814(RP)+, RS814, RX1214(RP)
- 13-series: RS10613xs+, RS3413xs+, RX1213sas
- 12-series: RS3412(RP)xs, RS2212(RP)+, RS812(RP)+, RS812
- 11-series: RS3411(RP)xs, RS2211(RP)+, RS411, RX1211(RP)
- 10-series: RS810(RP)+, RX410
- 9-series: RS409(RP)+, RS409, RX4
