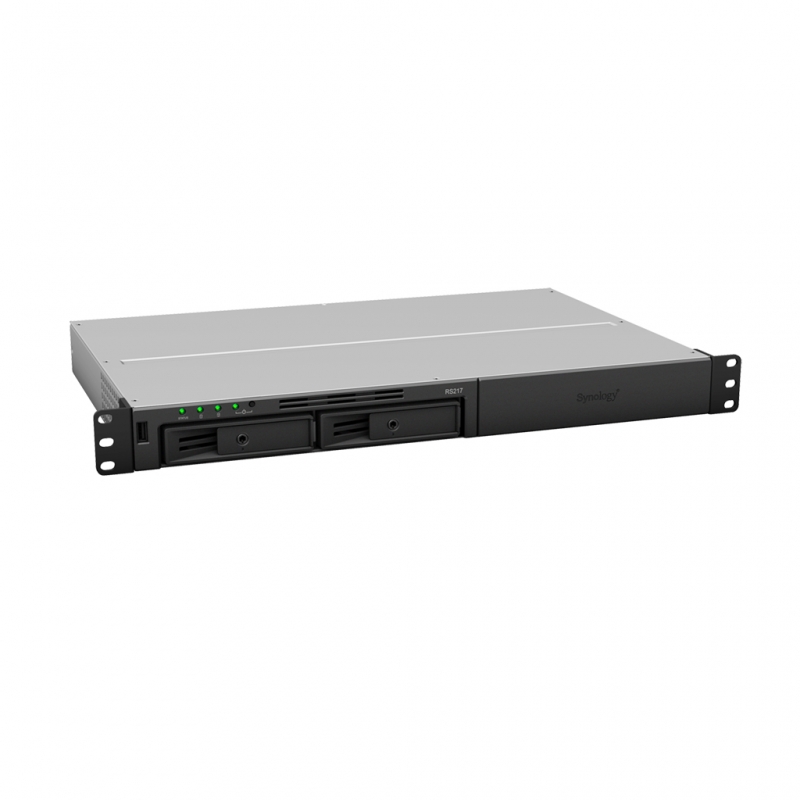

Synology Rs217 2-bay 3.5" Diskless 2xgbe Nas (1u Rack) (hmb) Marvell 1.33hz 512mb Ram 2xusb3 2xusb2

SKU
269720
Brand
Synology
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$794.00
Buy Now And Earn 794 Reward Points!

QUICK OVERVIEW

eSATA x1 -No Rail Kit needed! RS217
Add to Compare

Powerful centralized storage solution

Synology RackStation RS217 is a 2-bay rackmount NAS powered by a dual-core CPU with hardware encryption engine and comes with dual 1GbE LAN ports, providing excellent network performance and rich business features.

CPU

Dual-core 1.33GHz

Memory

512MB DDR3

Ultra Performance

Up to 221 MB/s reading and 171 MB/s writing performance

Eco-friendly

12.9 W in HDD hibernation/21.25 W in access

Compact chassis, easy deployment

RS217 comes in a compact 1U 2-bay rackmount chassis less than 12 inches deep and can be easily deployed in a 2-post or wall-mount rack, ideal for businesses where space is at a premium.

Ultimate file management and sharing

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, RS217 supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

Synchronize files across your devices

Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space. Learn more

Cloud Station Sharesync

Cloud Station Drive

Cloud Station Server

DS Cloud

Real-time collaboration on your private cloud

Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Hardware Specifications
CPU
CPU Model Marvell Armada 385 88F6820
CPU Architecture 32-bit
CPU Frequency Dual Core 1.33 GHz
Hardware Encryption Engine
Memory
System Memory 512 MB DDR3
Storage
Drive Bays 2
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 28 TB (14 TB drive x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 2.0 Port 1
USB 3.0 Port 2
eSATA Port 1
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+*
  • exFAT*
Notes
  • HFS+ is read only, max 2TB volume size.
  • exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 44 mm x 479.4 mm x 295.5 mm
　
Weight 3.46 kg
　
2-post rack support
Others
System Fan 40 mm x 40 mm x 3 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 25.8 dB(A)
　
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 100W
　
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 21.25 W (Access)
12.9 W (HDD Hibernation)
　
British Thermal Unit 72.56 BTU/hr (Access)
44.05 BTU/hr (HDD Hibernation)
　
Environment Temperature
Operating Temperature 5°C to 50°C (40°F to 122°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 3 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 10
Maximum iSCSI LUN 10
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
RAID Migration Basic to RAID 1
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • JBOD
File Services
File Protocol CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections 128
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 2
Log Center
Syslog Events per Second 100
Add-on Packages (learn more about the complete add-on package list)
Chat
Maximum Users 300
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices 128
Maximum Number of Hosted Files (ext4) 100,000
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time.
  • The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Download Station
Maximum Concurrent Download Tasks 30
exFAT Access (optional)
Media Server
DLNA Certification
Moments
Facial recognition
Subject recognition
Surveillance Station
Maximum IP cam (Licenses required) 16 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 480 FPS @ 720p (1280x720)
240 FPS @ 1080p (1920×1080)
150 FPS @ 3M (2048x1536)
60 FPS @ 5M (2591x1944)
　
Total FPS (MJPEG)* 240 FPS @ 720p (1280x720)
100 FPS @ 1080p (1920×1080)
60 FPS @ 3M (2048x1536)
30 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive
Recommended Number of Hosted Files 100,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Connections for PC Clients 200 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes
  • Exceeding the limits above may result in longer response time in file operations.
  • EXT4 file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users 200
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Video Transcoding Group 2 (See more)
Notes 　
VPN Server
Maximum Connections 20
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Welcome Note X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
Optional Accessories
  • Surveillance Device License Pack
  • VS360HD
  • VS960HD
