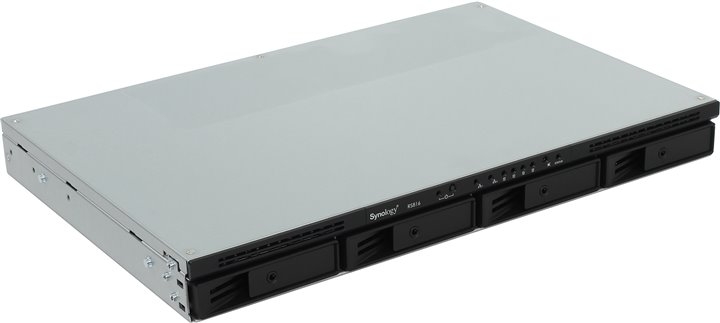

main product photo

Synology Rs816 4-bay 3.5" Diskless 2xgbe Nas (1u Rack) Marvell 1.8ghz 1gb Ram 2xusb3 Esata X1

SKU
269721
Brand
Synology
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$938.00
Buy Now And Earn 938 Reward Points!

QUICK OVERVIEW

Scalable RS816
Add to Compare

Powerful centralized storage solution

Synology RackStation RS816 is a 4-bay rackmount NAS powered by a dual-core CPU with hardware encryption engine, and comes with dual 1GbE LAN ports, providing excellent network performance and rich business features.

CPU

Dual-core 1.8GHz

Memory

1GB DDR3 RAM

Ultra Performance

Up to 225 MB/s reading and 145 MB/s writing performance

Eco-friendly

12.4 W in HDD hibernation/27.9 W in access

Compact chassis, easy deployment

RS816 comes in a compact 1U 4-bay rackmount chassis less than 12 inches deep and can be easily deployed in a 2-post or wall-mount rack, ideal for businesses where space is at a premium.

　

Flexible storage scalability

As your data storage needs grow, RS816 can be connected with one dedicated RX415 expansion unit for additional storage on the fly, increasing capacity with minimal effort. With RX415 connected, it can expand the hard drive quantity up to 8 units.

Ultimate file management and sharing

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, RS816 supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

Synchronize files across your devices

Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space. Learn more

Cloud Station Sharesync

Cloud Station Drive

Cloud Station Server

DS Cloud

Hardware Specifications
CPU
CPU Model Marvell Armada 385 88F6820
CPU Architecture 32-bit
CPU Frequency Dual Core 1.8 GHz
Hardware Encryption Engine
Memory
System Memory 1 GB DDR3
Storage
Drive Bays 4
Maximum Drive Bays with Expansion Unit 8
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 56 TB (14 TB drive x 4) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 112 TB (56 TB + 14 TB drive x 4) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
eSATA Port 1
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+*
  • exFAT*
Notes
  • HFS+ is read only, max 2TB volume size.
  • exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 44 mm x 478 mm x 327.5 mm
　
Weight 4.34 kg
　
Others
System Fan 40 mm x 40 mm x 3 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 28.9 dB(A)
　
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 150W
　
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 27.9 W (Access)
12.4 W (HDD Hibernation)
　
British Thermal Unit 95.2 BTU/hr (Access)
42.31 BTU/hr (HDD Hibernation)
　
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 3 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 128
Maximum iSCSI LUN 256
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • RAID 5
  • JBOD
  • RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
File Services
File Protocol CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections 256
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 4
Log Center
Syslog Events per Second 400
Add-on Packages (learn more about the complete add-on package list)
Chat
Maximum Users 30
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices 256
Maximum Number of Hosted Files (ext4) 100,000
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time.
  • The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Download Station
Maximum Concurrent Download Tasks 50
exFAT Access (optional)
Media Server
DLNA Certification
Moments
Facial recognition
Subject recognition
Surveillance Station
Maximum IP cam (Licenses required) 16 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 480 FPS @ 720p (1280x720)
400 FPS @ 1080p (1920×1080)
160 FPS @ 3M (2048x1536)
80 FPS @ 5M (2591x1944)
　
Total FPS (MJPEG)* 320 FPS @ 720p (1280x720)
120 FPS @ 1080p (1920×1080)
90 FPS @ 3M (2048x1536)
54 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive
Recommended Number of Hosted Files 100,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Connections for PC Clients 200 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes
  • Exceeding the limits above may result in longer response time in file operations.
  • EXT4 file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users 400
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Video Transcoding Group 2 (See more)
Notes 　
VPN Server
Maximum Connections 20
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Welcome Note X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
Optional Accessories
  • Surveillance Device License Pack
  • Expansion Unit: RX415 X 1
  • VS360HD
  • VS960HD
  • Synology Rail Kit Sliding - RKS1317
  • Synology Rail Kit Mounted - RKM114
