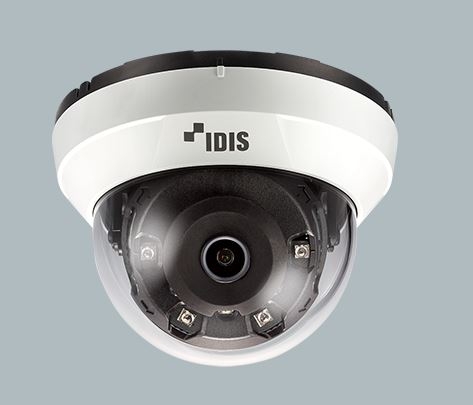

IDIS ANALOG HD-TVI 5MP FIXED INDOOR DOME 3YR TC-D5511RX-2.8MM
SKU
403658
Brand
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$167.00
Buy Now And Earn 167 Reward Points!
DirectCX 5M IR Dome Camera
/ NDAA Compliant
- 5M (2592x1944) resolution
- Fixed-focal Lens (f=2.8mm)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Motion Detection
- De-fog
- HLC
- Coaxial OSD Control
| Video | |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Frame Rate | TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP CVBS : NTSC / PAL(for previewing video) |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 104.8º(H) 76.9º(V) 130º(D) |
| Min. Illumination | COLOR : 0.15 Lux @ F 2.0 B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 50dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m / 65.6ft(4ea) |
| Video Out | 1 HD BNC (Signal Switchable) |
| Function | |
| Functions via OSD menu control | · AGC : 0 ~ 10 Level Adjustable · Brightness : 0 ~ 20 Level Adjustable · Sens-UP : OFF / x2 ~ x32 · WDR(Wide Dynamic Range) : OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available · Backlight Compensation(BLC) : OFF/ON · HLC : 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY) · ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH · Motion Detection : OFF/ON (4 Zone) · Privacy Masking : OFF/ON (24 Zone) BOX:16 POLYGON:8 · Day & Night : Color/B&W/EXTERN · Smart-IR(IR OPTIMIZER) : 0~20 Level Adjustable · White Balance : AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K) · Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH · Mirror : MIRROR, FLIP · D-ZOOM(EZOOM) : x1 ~ x16 · Sharpness : 0~10 Level Adjustable · De-fog : OFF/ON · GAMMA Correction : r = 0.45 ~ 0.75 · Lens Shading(LSC) : OFF / ON(0 ~ 100% Level Adjustable) · Language : ENG / CHN / CHN(S) / JPN / KOR |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | DC 12V |
| Power Consumption | 3.4W |
| Mechanical | |
| Dimensions | Ø110mm x 78mm (4.33" x 3.07") |
| Weight | 0.177kg (0.39lb) |
IDIS ANALOG HD-TVI 5MP FIXED INDOOR DOME 3YR
