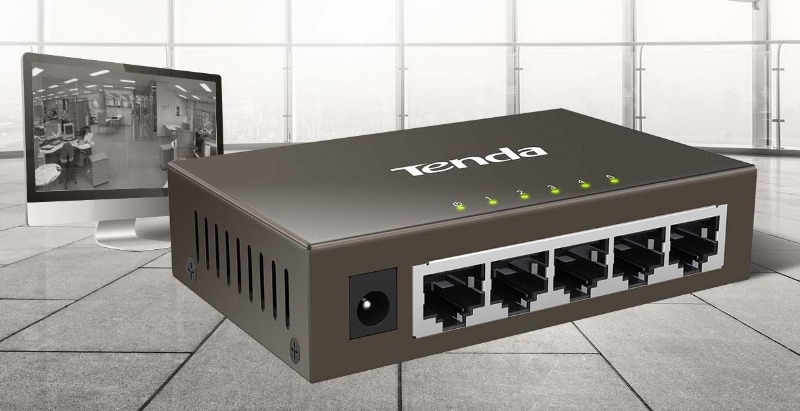

5-Port Gigabit Desktop Switch TEG1005D
SKU
381122
Brand
MPN
TEG1005D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$25.00
Buy Now And Earn 25 Reward Points!
Standard&Protocol
IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE802.3ab
Transmission Media
100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above（≤100m）UTP/STP
Interface
5*10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX
Lightning Protection
6KV for 5 Ports
LED indicator
1*power LED，5*10/100/1000Mbps Link/Act LEDs
Dimension
100mm×64mm×25mm(W*D*H)
Forwarding Mode
Store-and-Forward
MAC Address Table
2K
Forwarding Rate
10BASE-T：14881pps/port
100BASE-TX：148810pps/port
1000BASE-T：1488100pps/port
100BASE-TX：148810pps/port
1000BASE-T：1488100pps/port
Backbound Bandwidth
10Gbps
Power Input
100~240V AC，50/60Hz
Power Output
5V DC，0.6A
Temperature
Operation Temperature:-10°C~45°C
Storage Temperature: -40°C~70°C
Storage Temperature: -40°C~70°C
Humidity
Operation Humidity:10%~90% RH（non-condensing）
Storage Humidity:5%~90% RH（non-condensing）
Storage Humidity:5%~90% RH（non-condensing）
