Teltonika 4 Pin Power Cable With 4-Way Screw Terminal - Adds Di/Do Functionality And Allows For Direct Solar/DC Power PR2FK20M
SKU
273655
Brand
MPN
PR2FK20M
Warranty
1 Year Manufacturer's return to base
Availability
In stock
$20.00
Buy Now And Earn 20 Reward Points!

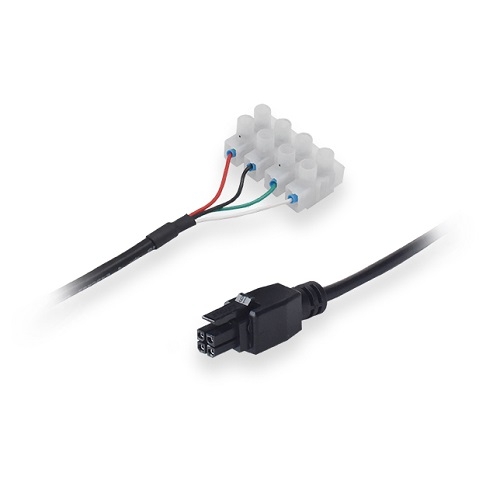

Teltonika 4 Pin Power Cable with 4-Way Screw Terminal
Input connector 4-way screw terminal
Output connector 4-pin, 3mm pitch
Cable 4x0.129 mm2 (26 AWG), 2000 mm
RoHS Compliant ✔
Color coding
1 Red Power +
2 Black Ground -
3 Green Input/Output/NC
4 White Input/Output/NC
Input connector 4-way screw terminal
Output connector 4-pin, 3mm pitch
Cable 4x0.129 mm2 (26 AWG), 2000 mm
RoHS Compliant ✔
Color coding
1 Red Power +
2 Black Ground -
3 Green Input/Output/NC
4 White Input/Output/NC
| Parameters | ||
|---|---|---|
| Input connector | 4-way screw terminal | |
| Output connector | 4-pin, 3mm pitch | |
| Cable | 4x0.129 mm2 (26 AWG), 2000 mm | |
| RoHS Compliant | ✔ | |
| Color coding | ||
| 1 Red | Power + | |
| 2 Black | Ground - | |
| 3 Green | Input/Output/NC | |
| 4 White | Input/Output/NC | |
Teltonika 4 Pin Power Cable with 4-Way Screw Terminal - Adds DI/DO Functionality and allows for Direct Solar/DC Power
