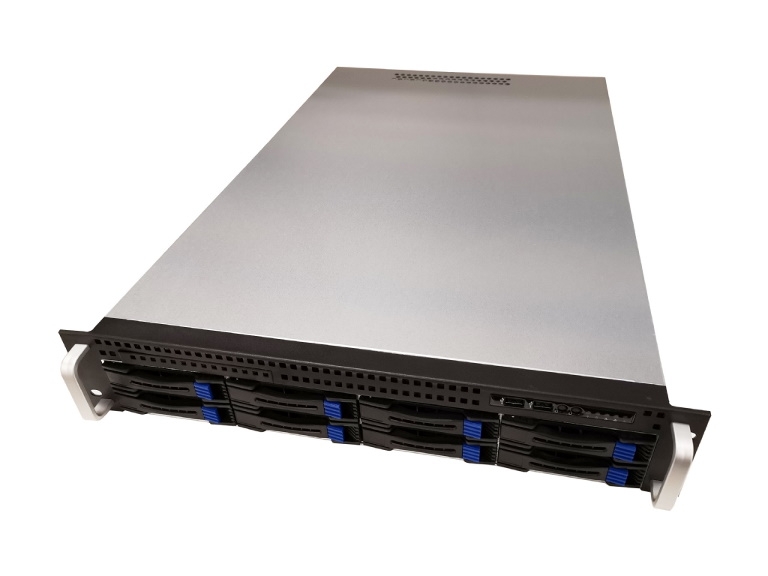

TGC Rack Mountable Server Chassis 2U 680mm TGC-2808, 8x 3.5" Hot-Swap Bays, 2x 2.5" Fixed Bays, up to E-ATX Motherboard, 7x LP PCIe, 2U PSU Required
SKU
272243
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$138.00
Buy Now And Earn 138 Reward Points!
Specifications:
| Case dimension | 680*430*88.5mm |
| Case steel | 1.2mm SGCC |
| Drivers | 8x 3.5“（or 2.5'）hotswap fixed 3.5” *1 (or fixed 2.5”/SSD *2) slim DVD*1 |
| backplane | 1 X 6Gb/s SATA/SAS (2*mini SAS) |
| Cooling fans | 4x 8038 ball-bearing |
| MB | 12” x 13” |
| PSU | 2U or redundant 1+1 (2U: SG2U600,SG2U700,etc) (Redundant: R2-600,R2-750,R2-1200,etc) |
| PCI | 7* Low-profile PCI |
| Front I/O | Power on/off, reset, USB2.0*2 |
| LED | 1*hdd,1*power,3* Lan |
| PWM | support |
| Slide | TGC-03A-PRO 550MM,TGC-03S 660MM |
| Packing | Single box (Length: 865MM,Width: *615MM,Height: 176 MM)
Gross weight: 12.0kgs |
