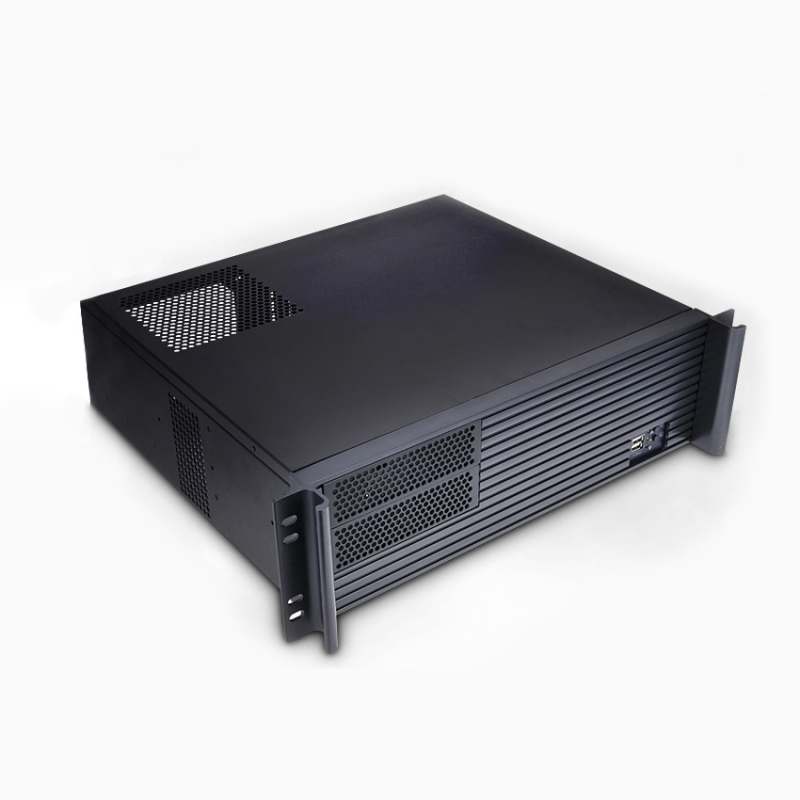

Tgc Rack Mountable Server Chassis 3U 380Mm Depth With Atx Psu Window - No Psu Tgc-32380
SKU
272245
Brand
MPN
TGC-32380
Warranty
Standard Manufacturer's Warranty
No Longer Available
$149.00
Buy Now And Earn 149 Reward Points!
TGC Rack Mountable Server Chassis Case 3U 650mm Depth with ATX PSU Window - NO PSU
SKU: TGC-32380
- 3RU Short Depth Chassis - 380mm
- Aluminium Louvres Front Panel
- 2 x 5.25" external bays
Details
This sleek short depth server chassis is perfect in the home or office. It can be used as a security server, video on demand (VOD) server, web server or business server. The louvered aluminium front is stylish and ideal for an environment where aesthetics are important.
Features
- 3RU rackmount design, meets EIARS-310C standard.
- 7 x 3.5 " internal HDD drive bays (8 if using Mini-ITX motherboard)
- 2 x 5.25" external drive bays
- 2 x 80mm internal fans
- Supports ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboards
- 4 x Full Height PCI Expansion Slots
- 2 x Front USB 2.0 ports
- Standard ATX PSU support
Specifications
- Drive Bay:
- Supports up to 8 x 3.5" drives
- 2 x 5.25" external drive bays
- Cooling Fans: 2 x 80mm fans (rear 2 x 6cm option)
- Switch: Power ON/OFF x 1, System Reset x 1
- Indicator: Power ON/OFF x 1, HDD x 1, NETWORK X 1
- Connector: Two front accessible USB 2.0 ports
- PCI Expansion: 4 x Full Height PCI Expansion Slots
- Motherboard Compatibility:
- ATX (12"x9.6")
- Micro ATX (9.6" x 9.6")
- Mini-ITX (6.7" x 6.7")
- Power Supply Options: Supports ATX PSU
- Dimensions (WxDxH): 19" x 15" x 5.25" (483mm x 380mm x 133mm)
- Packing: Double boxes
- Weight:
- 5.85 kg (NET)
- 7.5 kg (GROSS)
- Environment Temperature:
- 0/55 °C, 32/131 °F (Operating)
- -20/60 °C, -4/140 °F (Non-Operating)
- Relative Humidity: 5% to 95%, non-condensing
- Vibration (5-500Hz):
- 1 G (Operating)
- 2 G (Non-Operating)
- Shock:
- 10 G (Operating) - with 11ms duration, half sine wave
- 30 G (Non-Operating)
